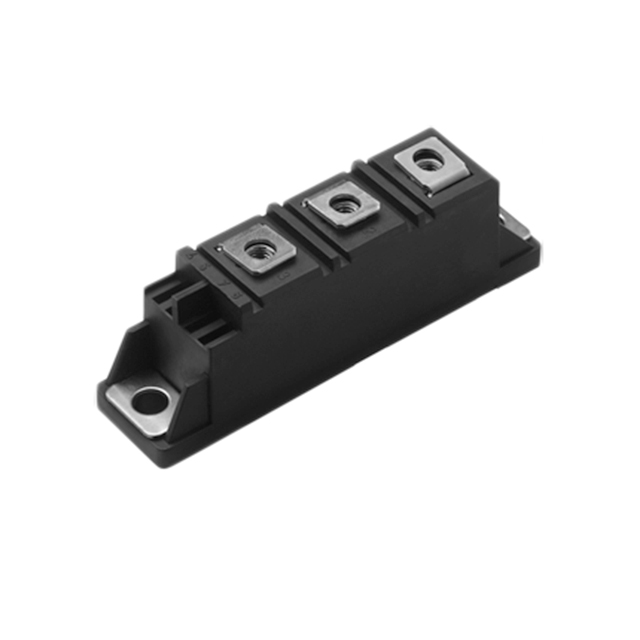

VS-VSKD56/06
ActiveVishay General Semiconductor - Diodes Division
DIODE MODULE GP 600V 30A ADDAPAK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VS-VSKD56/06
ActiveVishay General Semiconductor - Diodes Division
DIODE MODULE GP 600V 30A ADDAPAK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-VSKD56/06 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 30 A |
| Current - Reverse Leakage @ Vr | 10 mA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | ADD-A-PAK (3) |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | ADD-A-PAK® |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 33.59 | |
Description
General part information
VSKD56 Series
Diode Array 1 Pair Common Cathode 600 V 30A Chassis Mount ADD-A-PAK (3)
