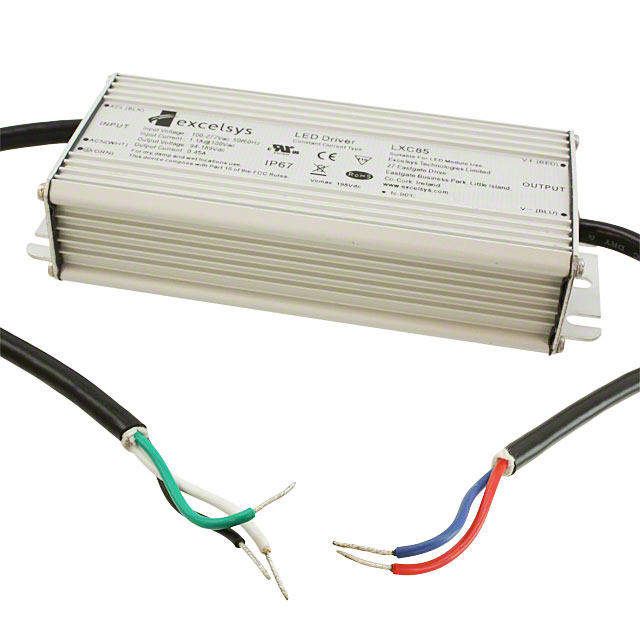

LXC85-2800SW
ObsoleteEXCELSYS / Advanced Energy
LED DRIVER CC AC/DC 16-30V 2.8A
Deep-Dive with AI
Search across all available documentation for this part.
LXC85-2800SW
ObsoleteEXCELSYS / Advanced Energy
LED DRIVER CC AC/DC 16-30V 2.8A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LXC85-2800SW |
|---|---|
| Approval Agency | CE, cULus, EN |
| Current - Output (Max) | 2.8 A |
| Efficiency | 89 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -35 °C |
| Power (Watts) | 85 W |
| Ratings | IP67 |
| Size / Dimension [x] | 6.97 in |
| Size / Dimension [x] | 177 mm |
| Size / Dimension [y] | 2.66 " |
| Size / Dimension [y] | 67.5 mm |
| Size / Dimension [z] | 37 mm |
| Size / Dimension [z] | 1.46 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 30 VDC |
| Voltage - Output [Min] | 16 V |
| Weight | 771.1 g |
| Weight | 1.7 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LXC85 Series
2.8A 16 ~ 30V Constant Current LED Driver AC DC Converter Topology 1 Output
