SI-N8U0814B0WW

Obsolete

Samsung Semiconductor, Inc.

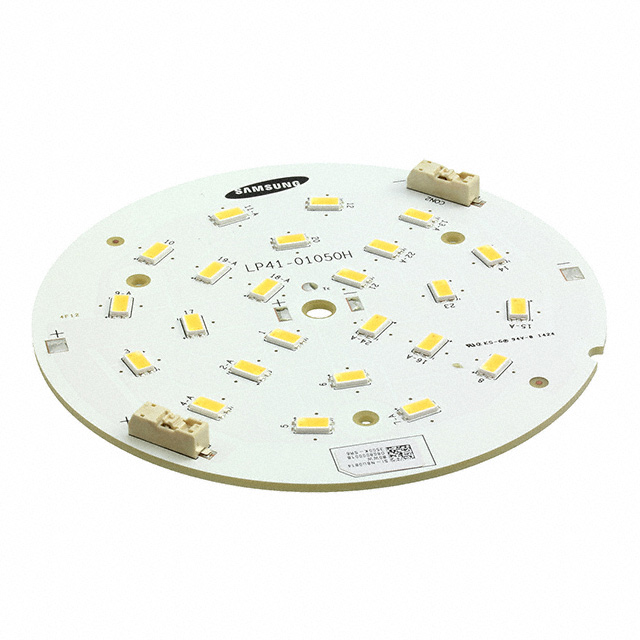

LED MOD RND-090C WHT RND 3500K

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED MOD RND-090C WHT RND 3500K

Technical Specifications

Parameters and characteristics for this part

Specification	SI-N8U0814B0WW

Color	White, Warm
Configuration	Round
CRI (Color Rendering Index)	80
Current - Test	350 mA
Features	With Connector
Height [z]	5.8 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	127 lm/W
Luminous Flux @ Current/Temperature	1070 lm
Size / Dimension [diameter]	90 mm
Temperature - Test	55 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	24 V

Part	Features	Viewing Angle	Color	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Temperature - Test	Size / Dimension [diameter]	Lens Type	Current - Test	Type	Luminous Flux @ Current/Temperature	Configuration	Height [z]	CRI (Color Rendering Index)	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]
Samsung Semiconductor, Inc. SI-N8U0814B0WW	With Connector	115 °	Warm White	127 lm/W	24 V	55 °C	90 mm	Flat	350 mA	LED Module	1070 lm	Round	5.8 mm	80
Samsung Semiconductor, Inc. SI-N8U3616E0WW		140 °	Warm White	29 lm/W	23.4 V	65 °C			1.56 A	LED Module		Square	2.2 mm	80	3500 K	28 mm	28 mm	2.8 A
Samsung Semiconductor, Inc. SI-N8U1816E0WW		140 °	Warm White	113 lm/W	23.4 V	65 °C			780 mA	LED Module	2060 lm	Square	2.2 mm	80	3500 K	19 mm	19 mm	1.4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Round-090C White, Warm Round
