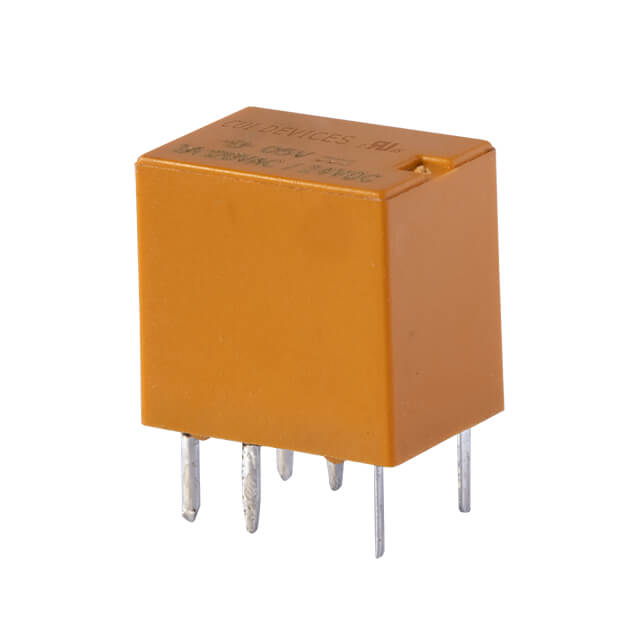

SR2-24V-330-1C
ActiveCUI Devices
RELAY GEN PURPOSE SPDT 1A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SR2-24V-330-1C
ActiveCUI Devices
RELAY GEN PURPOSE SPDT 1A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SR2-24V-330-1C |
|---|---|
| Coil Current | 15.8 mA |
| Coil Resistance | 1.515 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 1 A |
| Load - Max Switching | 120 VA, 24 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 6 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Switching Voltage [Max] | 24 VDC, 120 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.91 | |
| 10 | $ 1.79 | |||
| 25 | $ 1.59 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.43 | |||
| 250 | $ 1.40 | |||
Description
General part information
SR2-24V Series
General Purpose Relay SPDT (1 Form C) Through Hole
