9GA0712P1G0011

Active

Sanyo Denki America Inc.

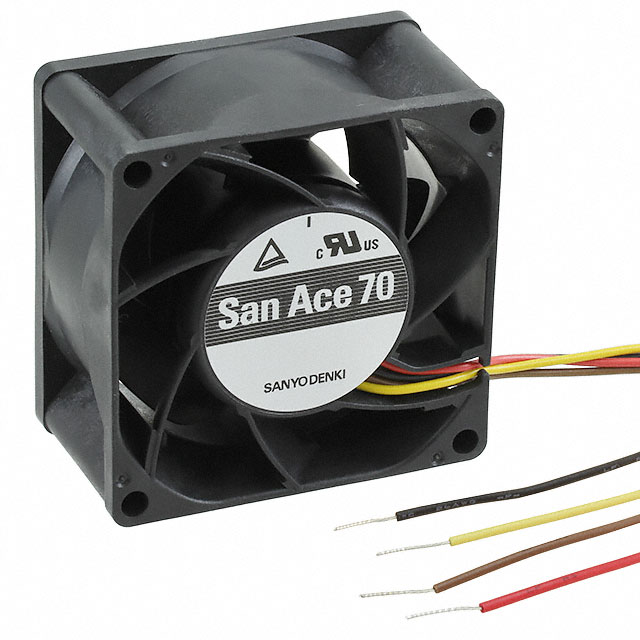

FAN AXIAL 70X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 70X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9GA0712P1G0011

Air Flow	93.6 CFM
Air Flow	2.62 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	2.6 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	65 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	31.2 W
RPM	16500 RPM
Size / Dimension [x]	70 mm
Size / Dimension [y]	70 mm
Static Pressure	860.1 Pa
Static Pressure	3.453 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	170.1 g
Weight	0.375 lb
Width [y]	38 mm

Part	Material - Frame	Current Rating (Amps)	Bearing Type	RPM	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Static Pressure	Static Pressure	Width [y]	Noise	Termination	Lifetime @ Temp.	Weight	Weight	Fan Type	Features	Air Flow	Air Flow	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated
Sanyo Denki America Inc. 9GA0712P1H001	Plastic	1.1 A	Ball	12000 RPM	70 mm	70 mm	CSA TUV UL	1.83 in H2O	455.8 Pa	38 mm	57 dB	4 Wire Leads	40000 Hrs	170.1 g	0.375 lb	Tubeaxial	PWM Control Speed Sensor (Tach)	67.8 CFM	1.9 m³/min	13.2 W	13.2 VDC	10.8 VDC	Plastic	-20 °C	70 °C	-20 C	70 °C	12 VDC
Sanyo Denki America Inc. 9GA0712P1G0011	Plastic	2.6 A	Ball	16500 RPM	70 mm	70 mm	CSA TUV UL	3.453 in H2O	860.1 Pa	38 mm	65 dB	4 Wire Leads	40000 Hrs	170.1 g	0.375 lb	Tubeaxial	PWM Control Speed Sensor (Tach)	93.6 CFM	2.62 m³/min	31.2 W	13.2 VDC	10.8 VDC	Plastic	-20 °C	70 °C	-20 C	70 °C	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	60	$ 29.88

General part information

Fan Tubeaxial 12VDC Square - 70mm L x 70mm H Ball 93.6 CFM (2.62m³/min) 4 Wire Leads
