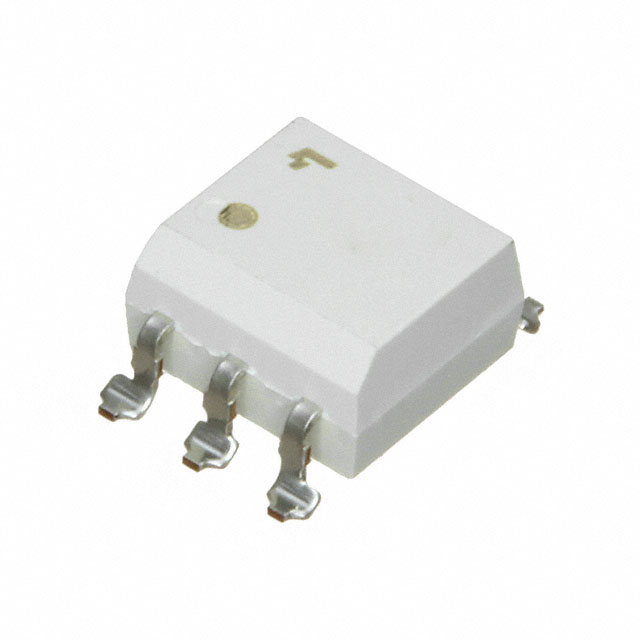

TLP4590A(D4TP1,F

Active

Toshiba Semiconductor and Storage

SSR RELAY SPST-NC 1.2A 0-60V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TLP4590A(D4TP1,F

Active

Toshiba Semiconductor and Storage

SSR RELAY SPST-NC 1.2A 0-60V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLP4590A(D4TP1,F

Approval Agency	VDE, UL, cUL
Circuit	SPST-NC (1 Form B)
Load Current	1.2 A
Mounting Type	Surface Mount
On-State Resistance (Max) [Max]	600 mOhm
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Output Type	DC, AC
Package / Case	7.62 mm
Package / Case	0.3 in
Package / Case	6-SMD
Supplier Device Package	6-SMD
Termination Style	SMD (SMT) Tab
Voltage - Input [Max]	1.4 VDC
Voltage - Input [Min]	1.1 V
Voltage - Load [Max]	60 V
Voltage - Load [Min]	0 V

TLP459 Series

Part	Load Current	Voltage - Load [Max]	Package / Case	Output Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	On-State Resistance (Max) [Max]	Termination Style	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]
Toshiba Semiconductor and Storage TLP4590A(D4LF5,F	1.2 A	60 V	6-SMD Gull Wing	AC DC	cUL UL VDE	-40 °C	110 °C	SPST-NC (1 Form B)	600 mOhm	SMD (SMT) Tab	Surface Mount	6-SMD
Toshiba Semiconductor and Storage TLP4590AF(D4,F	1.2 A	60 V	6-DIP	AC DC		-40 °C	110 °C	SPST-NC (1 Form B)	600 mOhm	PC Pin	Through Hole	6-DIP	10.16 mm	10.16 mm
Toshiba Semiconductor and Storage TLP4590AF(D4LF4F	1.2 A	60 V	6-SMD Gull Wing	AC DC		-40 °C	110 °C	SPST-NC (1 Form B)	600 mOhm	Gull Wing	Surface Mount	6-SMD
Toshiba Semiconductor and Storage TLP4590A(TP5,F	1.2 A	60 V	6-SMD Gull Wing	AC DC	cUL UL VDE	-40 °C	110 °C	SPST-NC (1 Form B)	600 mOhm	SMD (SMT) Tab	Surface Mount	6-SMD			1.1 V	1.4 VDC
Toshiba Semiconductor and Storage TLP4590A(LF1,F	1.2 A	60 V	6-SMD	AC DC	cUL UL VDE	-40 °C	110 °C	SPST-NC (1 Form B)	600 mOhm	SMD (SMT) Tab	Surface Mount	6-SMD	7.62 mm	0.3 in
Toshiba Semiconductor and Storage TLP4590A(D4TP1,F	1.2 A	60 V	6-SMD	AC DC	cUL UL VDE	-40 °C	110 °C	SPST-NC (1 Form B)	600 mOhm	SMD (SMT) Tab	Surface Mount	6-SMD	7.62 mm	0.3 in	1.1 V	1.4 VDC
Toshiba Semiconductor and Storage TLP4590AF(TP4,F	1.2 A	60 V	6-SMD Gull Wing	AC DC		-40 °C	110 °C	SPST-NC (1 Form B)	600 mOhm	Gull Wing	Surface Mount	6-SMD
Toshiba Semiconductor and Storage TLP4590A(D4TP5,F	1.2 A	60 V	6-SMD Gull Wing	AC DC	cUL UL VDE	-40 °C	110 °C	SPST-NC (1 Form B)	600 mOhm	SMD (SMT) Tab	Surface Mount	6-SMD			1.1 V	1.4 VDC
Toshiba Semiconductor and Storage TLP4590AF(F	1.2 A	60 V	6-DIP	AC DC	cUL UL VDE	-40 °C	110 °C	SPST-NC (1 Form B)	600 mOhm	PC Pin	Through Hole	6-DIP	10.16 mm	10.16 mm
Toshiba Semiconductor and Storage TLP4590A(F	1.2 A	60 V	6-SMD Gull Wing	AC DC	cUL UL VDE	-40 °C	110 °C	SPST-NC (1 Form B)	600 mOhm	Gull Wing	Surface Mount	6-SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.68
		10	$ 3.21
		25	$ 3.04
		50	$ 2.92
		100	$ 2.81
		250	$ 2.66
		500	$ 2.55
	Digi-Reel®	1	$ 3.68
		10	$ 3.21
		25	$ 3.04
		50	$ 2.92
		100	$ 2.81
		250	$ 2.66
		500	$ 2.55
	Tape & Reel (TR)	1500	$ 2.39
		3000	$ 2.30

Description

General part information

TLP459 Series

Solid State SPST-NC (1 Form B) 6-SMD (0.300", 7.62mm)
