333-032-558-102
ActiveEDAC Inc.

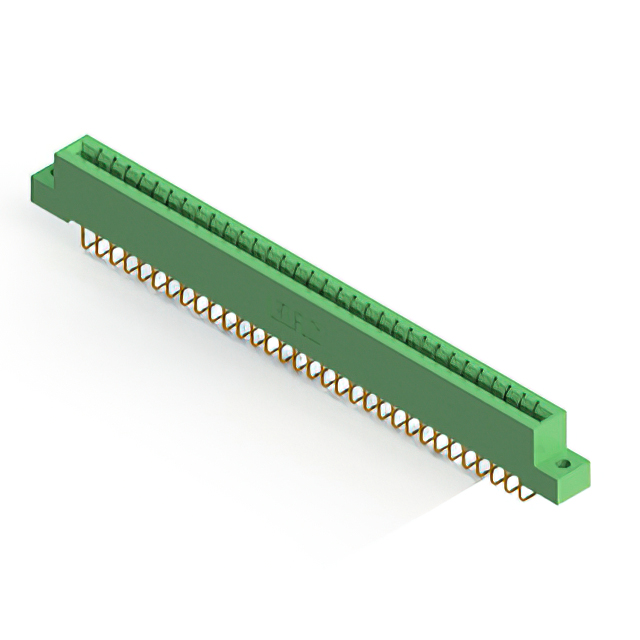

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
333-032-558-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-032-558-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
333-032 Series
...
| Part | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Material - Insulation | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Finish | Pitch [x] | Pitch [x] | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Card Type | Color | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination Rows | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole | Polyester Thermoplastic | 16 | -40 °C | 105 ░C | Cantilever | Gold | 0.156 in | 3.96 mm | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | Green | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 2 | |||
EDAC Inc. | Dual | Side Mount Opening Unthreaded | Through Hole Right Angle | Polyester Thermoplastic | 16 | -40 °C | 105 ░C | Cantilever | Gold | 0.156 in | 3.96 mm | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | Green | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Single | Through Hole | Polyester Thermoplastic | 32 | -40 °C | 105 ░C | Cantilever | Gold | 0.156 in | 3.96 mm | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Green | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 1 | ||||||
EDAC Inc. | Dual | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Polyester Thermoplastic | 16 | -40 °C | 105 ░C | Cantilever | Gold | 0.156 in | 3.96 mm | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | Green | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 2 | |||||
EDAC Inc. | Single | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Through Hole | Polyester Thermoplastic | 32 | -40 °C | 105 ░C | Cantilever | Gold | 0.156 in | 3.96 mm | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Green | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 1 | |||
EDAC Inc. | Single | 4-40 Threaded Insert Top Mount Opening | Through Hole | Polyester Thermoplastic | 32 | -40 °C | 105 ░C | Cantilever | Gold | 0.156 in | 3.96 mm | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Green | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 1 | |||||
EDAC Inc. | Single | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Through Hole Right Angle | Polyester Thermoplastic | 32 | -40 °C | 105 ░C | Cantilever | Gold | 0.156 in | 3.96 mm | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Green | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 1 | |||
EDAC Inc. | Dual | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Board Edge Straddle Mount | Polyester Thermoplastic | 16 | -40 °C | 105 ░C | Cantilever | Gold | 0.156 in | 3.96 mm | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | Green | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Card Extender | ||
EDAC Inc. | Single | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Through Hole | Polyester Thermoplastic | 32 | -40 °C | 105 ░C | Cantilever | Gold | 0.156 in | 3.96 mm | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Single Edge | Green | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 1 | |||
EDAC Inc. | Dual | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Through Hole | Polyester Thermoplastic | 16 | -40 °C | 105 ░C | Cantilever | Gold | 0.156 in | 3.96 mm | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Non Specified - Dual Edge | Green | 2 | 10 Áin | 0.25 Ám | Copper Alloy | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
333-032 Series
32 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
