114-87-318-41-134161

Active

PRECI-DIP SA

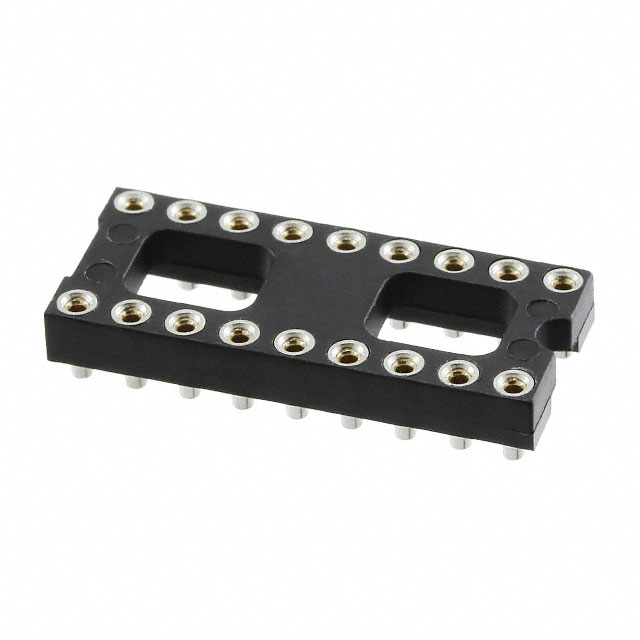

CONN IC DIP SOCKET 18POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDIL/SIL/TO Socket Catalog

114-87-318-41-134161

Active

PRECI-DIP SA

CONN IC DIP SOCKET 18POS GOLD

Deep-Dive with AI

DocumentsDIL/SIL/TO Socket Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	114-87-318-41-134161

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	1.2 mm
Termination Post Length [x]	0.047 in
Type	0.3 "
Type	7.62 mm
Type	DIP

114-87 Series

Part	Housing Material	Features	Current Rating (Amps)	Contact Finish - Mating	Termination	Material Flammability Rating	Pitch - Post	Pitch - Post	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Type	Type	Type	Contact Material - Post [custom]	Mounting Type	Termination Post Length	Termination Post Length [x]	Contact Material - Mating	Contact Resistance	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 114-87-632-41-117101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	1 A	Gold	Solder	UL94 V-0	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	Brass	Surface Mount	1.2 mm	0.047 in	Beryllium Copper	10 mOhm	Flash	-55 °C	125 °C	2 x 16	32
PRECI-DIP SA 114-87-316-41-117101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	1 A	Gold	Solder	UL94 V-0	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm	Brass	Surface Mount	1.2 mm	0.047 in	Beryllium Copper	10 mOhm	Flash	-55 °C	125 °C			16
PRECI-DIP SA 114-87-314-41-134161	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	1 A	Gold	Solder	UL94 V-0	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm	Brass	Surface Mount	1.2 mm	0.047 in	Beryllium Copper	10 mOhm	Flash	-55 °C	125 °C			14
PRECI-DIP SA 114-87-632-41-134191	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	1 A	Gold	Solder	UL94 V-0	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	Brass	Surface Mount	1.2 mm	0.047 in	Beryllium Copper	10 mOhm	Flash	-55 °C	125 °C	2 x 16	32
PRECI-DIP SA 114-87-324-41-134161	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	1 A	Gold	Solder	UL94 V-0	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm	Brass	Surface Mount	1.2 mm	0.047 in	Beryllium Copper	10 mOhm	Flash	-55 °C	125 °C			24
PRECI-DIP SA 114-87-306-41-134191	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	1 A	Gold	Solder	UL94 V-0	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm	Brass	Surface Mount	1.2 mm	0.047 in	Beryllium Copper	10 mOhm	Flash	-55 °C	125 °C				2	6	3
PRECI-DIP SA 114-87-312-41-134191	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	1 A	Gold	Solder	UL94 V-0	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm	Brass	Surface Mount	1.2 mm	0.047 in	Beryllium Copper	10 mOhm	Flash	-55 °C	125 °C			2 6 12
PRECI-DIP SA 114-87-318-41-134161	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	1 A	Gold	Solder	UL94 V-0	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm	Brass	Surface Mount	1.2 mm	0.047 in	Beryllium Copper	10 mOhm	Flash	-55 °C	125 °C			18
PRECI-DIP SA 114-87-306-41-134161	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	1 A	Gold	Solder	UL94 V-0	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm	Brass	Surface Mount	1.2 mm	0.047 in	Beryllium Copper	10 mOhm	Flash	-55 °C	125 °C				2	6	3
PRECI-DIP SA 114-87-428-41-117101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	1 A	Gold	Solder	UL94 V-0	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	DIP	0.4 in	10.16 mm	Brass	Surface Mount	1.2 mm	0.047 in	Beryllium Copper	10 mOhm	Flash	-55 °C	125 °C			28

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.62
		22	$ 1.30
		110	$ 1.16
		506	$ 1.04
		1012	$ 0.99
		5016	$ 0.88
		10010	$ 0.84

Description

General part information

114-87 Series

18 (2 x 9) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Surface Mount

Documents

Technical documentation and resources

DIL/SIL/TO Socket Catalog

Datasheet
