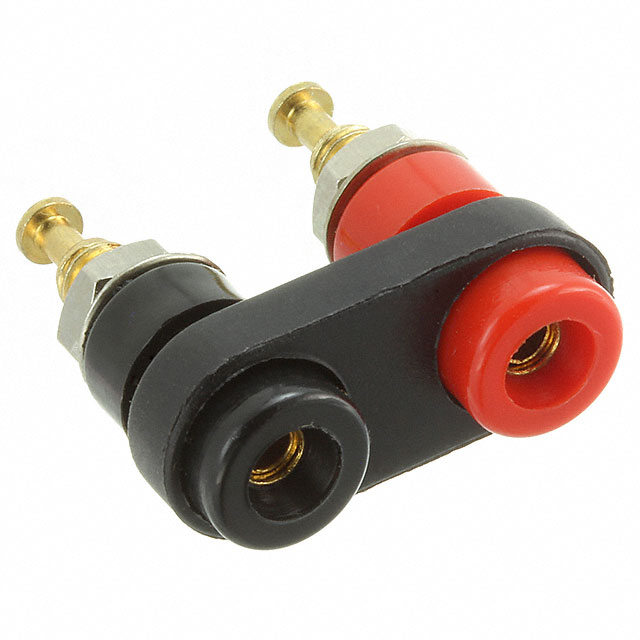

BU-P4543-0

Active

Mueller Electric Co

TEST CONNECTOR, TIP JACK, STANDARD 0.08" PIN PLUGS, 5 A, BLACK

Search across all available documentation for this part.

Active

Mueller Electric Co

TEST CONNECTOR, TIP JACK, STANDARD 0.08" PIN PLUGS, 5 A, BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Plug/Mating Plug Diameter	Contact Finish	Type	Contact Material	Termination	Insulation	Color	Gender	Operating Temperature [Min]	Operating Temperature [Max]
Mueller Electric Co BU-P4543-0	Nylon Polyamide (PA)	Standard Tip	Gold	Tip Jack Double	Beryllium Copper	Turret	Mating End Insulated	Black Red	Female	-50 °C	120 °C
Mueller Electric Co BU-P4543-2	Nylon Polyamide (PA)	Standard Tip	Gold	Tip Jack Double	Beryllium Copper	Turret	Mating End Insulated	Black Red	Female	-50 °C	120 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tip Jack, Double Connector Standard Tip Turret Black, Red
