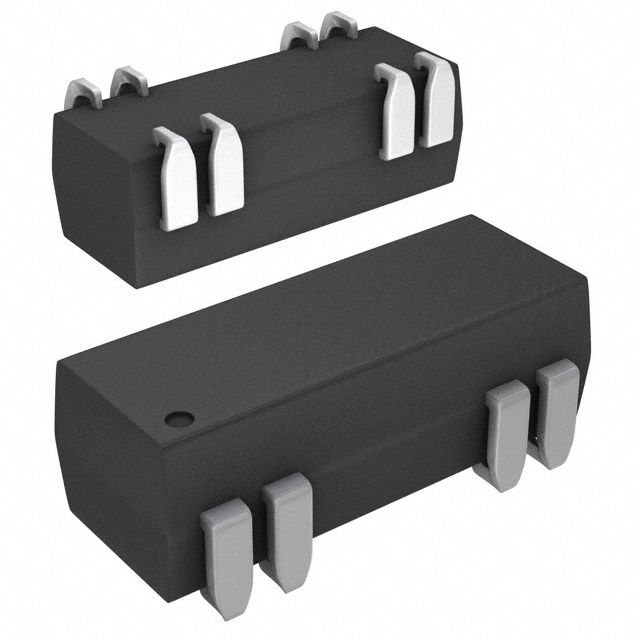

8L61-05-001

Active

Coto Technology

RELAY REED SPDT 250MA 5V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED SPDT 250MA 5V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Type	Switching Voltage	Contact Form	Contact Rating (Current)	Termination Style	Coil Voltage	Operate Time	Coil Resistance	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Features	Coil Current	Must Operate Voltage	Mounting Type	Release Time
Coto Technology 8L61-12-011	Non Latching	100 VAC 100 VDC	SPDT (1 Form C)	250 mA	J Lead	12 VDC	1 ms	500 Ohms	1 VDC	85 °C	-20 C	Diode	24 mA	9.6 VDC	Surface Mount	1 ms
Coto Technology 8L61-05-001	Non Latching	100 VAC 100 VDC	SPDT (1 Form C)	250 mA	J Lead	5 VDC	1 ms	200 Ohms	0.5 VDC	85 °C	-20 C			3.8 VDC	Surface Mount	1 ms
Coto Technology 8L61-05-101	Non Latching	100 VAC 100 VDC	SPDT (1 Form C)	250 mA	J Lead	5 VDC	1 ms	200 Ohms	0.5 VDC	85 °C	-20 C	Electrostatic Shield		3.8 VDC	Surface Mount	1 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED SPDT 250MA 5V
