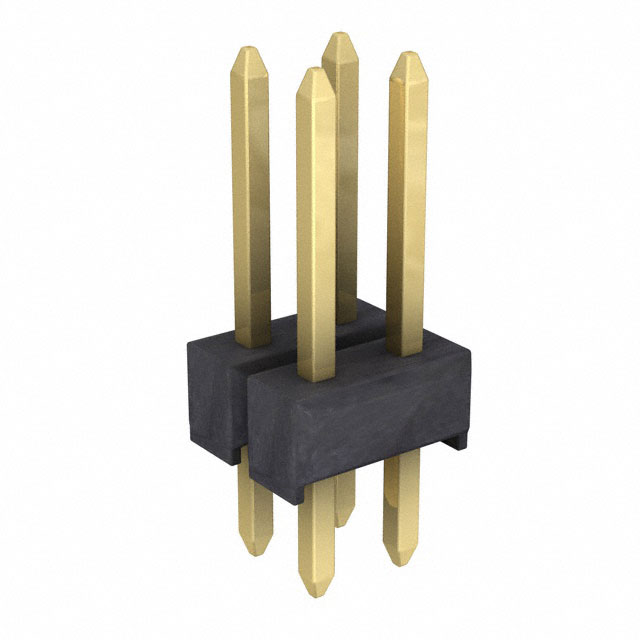

M20-9720245

Active

Harwin Inc.

2+2 POS. MALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 Datasheet +2

M20-9720245

Active

Harwin Inc.

2+2 POS. MALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-9720245

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Length - Mating	7 mm
Contact Length - Mating	0.276 in
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	9.94 mm, 11.04 mm, 16.54 mm, 10.64 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.496 in
Overall Contact Length	12.6 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

M20-972 Series

Part	Contact Type	Insulation Color	Number of Positions	Contact Shape	Material Flammability Rating	Shrouding	Mounting Type	Number of Rows	Termination	Contact Material	Style	Current Rating (Amps)	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Fastening Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish - Post
Harwin Inc. M20-9721045	Male Pin	Black	20	Square	UL94 V-0	Unshrouded	Through Hole	2	Solder	Brass	Board to Board Cable	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Cuttable Header	2.54 mm	0.1 in	All	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	0.122 "	3.1 mm	7 mm	0.276 in	0.496 in	12.6 mm	0.1 in	2.54 mm	Gold
Harwin Inc. M20-9723645	Male Pin	Black	72	Square	UL94 V-0	Unshrouded	Through Hole	2	Solder	Brass	Board to Board Cable	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Cuttable Header	2.54 mm	0.1 in	All	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	0.122 "	3.1 mm	7 mm	0.276 in	0.496 in	12.6 mm	0.1 in	2.54 mm	Gold
Harwin Inc. M20-9720445	Male Pin	Black	8	Square	UL94 V-0	Unshrouded	Through Hole	2	Solder	Brass	Board to Board Cable	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Cuttable Header	2.54 mm	0.1 in	All	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	0.122 "	3.1 mm	7 mm	0.276 in	0.496 in	12.6 mm	0.1 in	2.54 mm	Gold
Harwin Inc. M20-9721645	Male Pin	Black		Square	UL94 V-0	Unshrouded	Through Hole	2	Solder	Brass	Board to Board Cable	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Cuttable Header	2.54 mm	0.1 in	All	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	0.122 "	3.1 mm	7 mm	0.276 in	0.496 in	12.6 mm	0.1 in	2.54 mm	Gold
Harwin Inc. M20-9720446	Male Pin	Black	8	Square	UL94 V-0	Unshrouded	Through Hole	2	Solder	Brass	Board to Board Cable	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Cuttable Header	2.54 mm	0.1 in	All	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	0.122 "	3.1 mm	7 mm	0.276 in	0.496 in	12.6 mm	0.1 in	2.54 mm		Tin
Harwin Inc. M20-9720346	Male Pin	Black	6	Square	UL94 V-0	Unshrouded	Through Hole	2	Solder	Brass	Board to Board Cable	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Cuttable Header	2.54 mm	0.1 in	All	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	0.122 "	3.1 mm	7 mm	0.276 in	0.496 in	12.6 mm	0.1 in	2.54 mm		Tin
Harwin Inc. M20-9720245	Male Pin	Black	4	Square	UL94 V-0	Unshrouded	Through Hole	2	Solder	Brass	Board to Board Cable	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Cuttable Header	2.54 mm	0.1 in	All	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	0.122 "	3.1 mm	7 mm	0.276 in	0.496 in	12.6 mm	0.1 in	2.54 mm	Gold
Harwin Inc. M20-9720345	Male Pin	Black	6	Square	UL94 V-0	Unshrouded	Through Hole	2	Solder	Brass	Board to Board Cable	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Cuttable Header	2.54 mm	0.1 in	All	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	0.122 "	3.1 mm	7 mm	0.276 in	0.496 in	12.6 mm	0.1 in	2.54 mm	Gold
Harwin Inc. M20-9721845	Male Pin	Black	36	Square	UL94 V-0	Unshrouded	Through Hole	2	Solder	Brass	Board to Board Cable	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Cuttable Header	2.54 mm	0.1 in	All	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	0.122 "	3.1 mm	7 mm	0.276 in	0.496 in	12.6 mm	0.1 in	2.54 mm	Gold
Harwin Inc. M20-9724045	Male Pin	Black	80	Square	UL94 V-0	Unshrouded	Through Hole	2	Solder	Brass	Board to Board Cable	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	0.1 in	2.54 mm	Cuttable Header	2.54 mm	0.1 in	All	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	0.122 "	3.1 mm	7 mm	0.276 in	0.496 in	12.6 mm	0.1 in	2.54 mm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.30
		10	$ 0.26
		100	$ 0.20
		500	$ 0.17
		1000	$ 0.14
		5000	$ 0.12
		10000	$ 0.11
Newark	Each	1000	$ 0.14

Description

General part information

M20-972 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

M20-003

Datasheet

M20 Series Spec Sheet

Datasheet

3D Product Image EN

Datasheet
