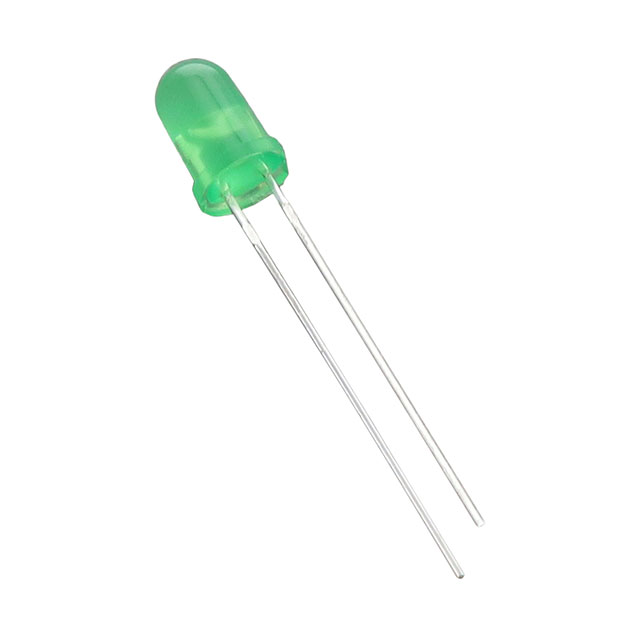

5GDL-F
ActiveBivar Inc.
GENERAL PURPOSE VISIBLE DOME-STYLE LED,GREEN,DIFFUSED,LED-2B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5GDL-F
ActiveBivar Inc.
GENERAL PURPOSE VISIBLE DOME-STYLE LED,GREEN,DIFFUSED,LED-2B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5GDL-F |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) [Max] [z] | 8.6 mm |
| Lens Color | Green |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 4 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 568 nm |
5GD Series
| Part | Lens Size | Lens Size | Wavelength - Peak | Lens Transparency | Voltage - Forward (Vf) (Typ) | Lens Color | Millicandela Rating | Configuration | Package / Case | Supplier Device Package | Mounting Type | Height (Max) [Max] [z] | Color | Viewing Angle | Current - Test | Lens Style | Viewing Angle [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bivar Inc. | T-1 3/4 | 5 mm | 568 nm | Diffused | 2.1 V | Green | 5 mcd | Standard | Radial | T-1 3/4 | Through Hole | 8.5 mm | Green | 45 ° | 2 mA | Round with Domed Top | |
Bivar Inc. | T-1 3/4 | 5 mm | 568 nm | Diffused | 2.1 V | Green | 4 mcd | Standard | Radial | T-1 3/4 | Through Hole | 8.6 mm | Green | 2 mA | Round with Domed Top | 40 ° | |
Bivar Inc. | T-1 3/4 | 5 mm | 568 nm | Diffused | 2.1 V | Green | 25 mcd | Standard | Radial | T-1 3/4 | Through Hole | 8.5 mm | Green | 45 ° | 20 mA | Round with Domed Top | |
Bivar Inc. | T-1 3/4 | 5 mm | 568 nm | Diffused | 2.1 V | Green | 25 mcd | Standard | Radial | T-1 3/4 | Through Hole | 8.6 mm | Green | 20 mA | Round with Domed Top | 40 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
5GD Series
Green LED Indication - Discrete 2.1V Radial
