SRR1210-181M

Active

Bourns Inc.

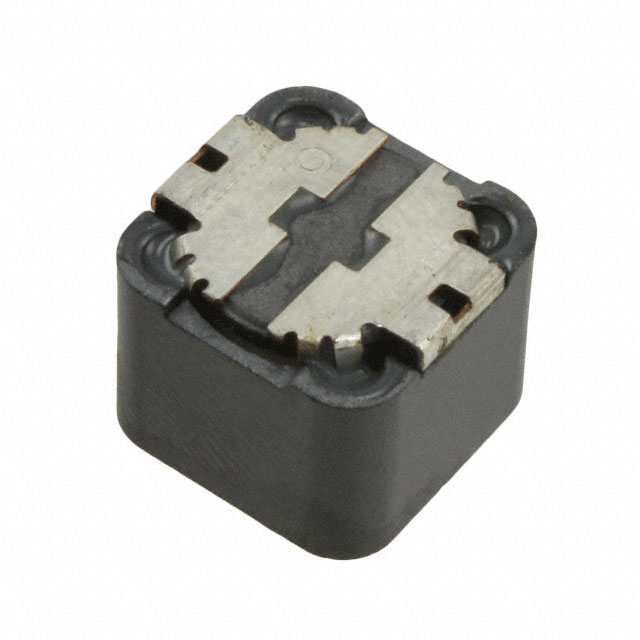

POWER INDUCTOR (SMD), 180 ΜH, 1.9 A, SHIELDED, 1.6 A, SRR1210 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SRR1210-181M

Active

Bourns Inc.

POWER INDUCTOR (SMD), 180 ΜH, 1.9 A, SHIELDED, 1.6 A, SRR1210 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR1210-181M

Current - Saturation (Isat)	1.6 A
Current Rating (Amps)	1.9 A
DC Resistance (DCR) [Max]	250 mOhm
Frequency - Self Resonant	1.8 MHz
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Inductance	180 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	14, 796 kHz
Shielding	Shielded
Size / Dimension [x]	0.472 in
Size / Dimension [x]	12 mm
Size / Dimension [y]	0.472 "
Size / Dimension [y]	12 mm
Tolerance	20 %
Type	Wirewound, Drum Core

SRR1210 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Q @ Freq	Type	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Inductance Frequency - Test	Mounting Type	Package / Case	Inductance	Tolerance	Current - Saturation (Isat)	Frequency - Self Resonant	Shielding	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. SRR1210-820M	125 °C	-40 °C	0.394 in	10 mm	2.52 MHz 15	Drum Core Wirewound	Ferrite	0.472 in	0.472 "	12 mm	12 mm	2.8 A	100 kHz	Surface Mount	Nonstandard	82 µH	20 %	2.5 A	3.5 MHz	Shielded	112 mOhm
Bourns Inc. SRR1210-220M	125 °C	-40 °C	0.394 in	10 mm	2.52 MHz 16	Drum Core Wirewound	Ferrite	0.472 in	0.472 "	12 mm	12 mm	5.2 A	100 kHz	Surface Mount	Nonstandard	22 µH	20 %	4.5 A	8 MHz	Shielded	38 mOhm
Bourns Inc. SRR1210-6R8Y	125 °C	-40 °C	0.394 in	10 mm	7.96 MHz 12	Drum Core Wirewound	Ferrite	0.472 in	0.472 "	12 mm	12 mm	7.9 A	100 kHz	Surface Mount	Nonstandard	6.8 µH	30 %		20 MHz	Shielded	15 mOhm
Bourns Inc. SRR1210-391M	125 °C	-40 °C	0.394 in	10 mm	16 796 kHz	Drum Core Wirewound	Ferrite	0.472 in	0.472 "	12 mm	12 mm	1.3 A	100 kHz	Surface Mount	Nonstandard	390 µH	20 %	1.1 A	1.3 MHz	Shielded
Bourns Inc. SRR1210-471M	125 °C	-40 °C	0.394 in	10 mm	12 796 kHz	Drum Core Wirewound	Ferrite	0.472 in	0.472 "	12 mm	12 mm	1.2 A	100 kHz	Surface Mount	Nonstandard		20 %	1 A	850 kHz	Shielded	820 mOhm
Bourns Inc. SRR1210-181M	125 °C	-40 °C	0.394 in	10 mm	14 796 kHz	Drum Core Wirewound	Ferrite	0.472 in	0.472 "	12 mm	12 mm	1.9 A	100 kHz	Surface Mount	Nonstandard	180 µH	20 %	1.6 A	1.8 MHz	Shielded	250 mOhm
Bourns Inc. SRR1210-102M	125 °C	-40 °C	0.394 in	10 mm	22 796 kHz	Drum Core Wirewound	Ferrite	0.472 in	0.472 "	12 mm	12 mm	750 mA	100 kHz	Surface Mount	Nonstandard	1 mH	20 %	700 mA	850 kHz	Shielded		1.65 Ohm
Bourns Inc. SRR1210-270M	125 °C	-40 °C	0.394 in	10 mm	2.52 MHz 16	Drum Core Wirewound	Ferrite	0.472 in	0.472 "	12 mm	12 mm	5 A	100 kHz	Surface Mount	Nonstandard	27 µH	20 %		6.5 MHz	Shielded	40 mOhm
Bourns Inc. SRR1210-561M	125 °C	-40 °C	0.394 in	10 mm	12 796 kHz	Drum Core Wirewound	Ferrite	0.472 in	0.472 "	12 mm	12 mm	1.1 A	100 kHz	Surface Mount	Nonstandard	560 µH	20 %	950 mA	850 kHz	Shielded
Bourns Inc. SRR1210-681M	125 °C	-40 °C	0.394 in	10 mm	11 796 kHz	Drum Core Wirewound	Ferrite	0.472 in	0.472 "	12 mm	12 mm	1 A	100 kHz	Surface Mount	Nonstandard	680 µH	20 %	850 mA	850 kHz	Shielded	1.2 Ohm
