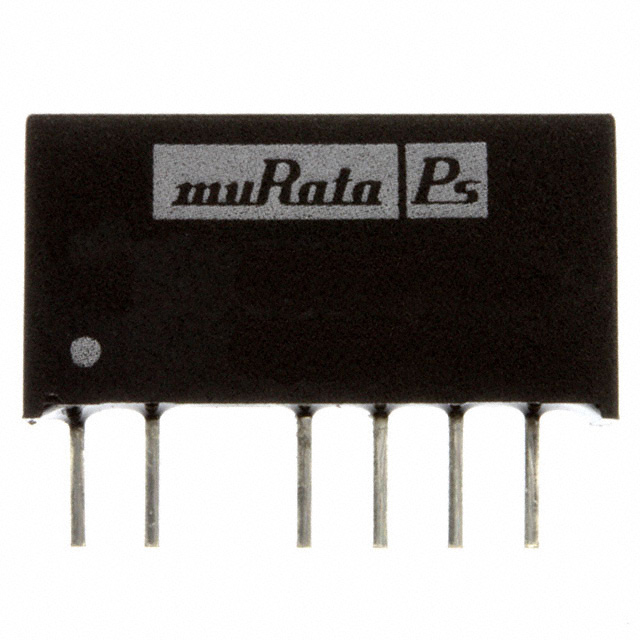

NMD050509SC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 5V 9V 1W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 5V 9V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Voltage - Isolation	Voltage - Output 2	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Efficiency	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Murata Power Solutions Inc. NMD050509DC	5 V	1000 V	9 V	70 °C	5.5 V	2	100 mA	56 mA	4.5 V	80 %	ITE (Commercial)	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm	Isolated Module	14-DIP Module 7 Leads	Through Hole
Murata Power Solutions Inc. NMD050505DC	5 V	1000 V	5 V	70 °C	5.5 V	2	100 mA	100 mA	4.5 V	70 %	ITE (Commercial)	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm	Isolated Module	14-DIP Module 7 Leads	Through Hole
Murata Power Solutions Inc. NMD050509SC	5 V	1000 V	9 V	70 °C	5.5 V	2	100 mA	56 mA	4.5 V	80 %	ITE (Commercial)				Isolated Module	7-SIP Module 6 Leads	Through Hole	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 5V 9V 100mA, 56mA 4.5V - 5.5V Input
