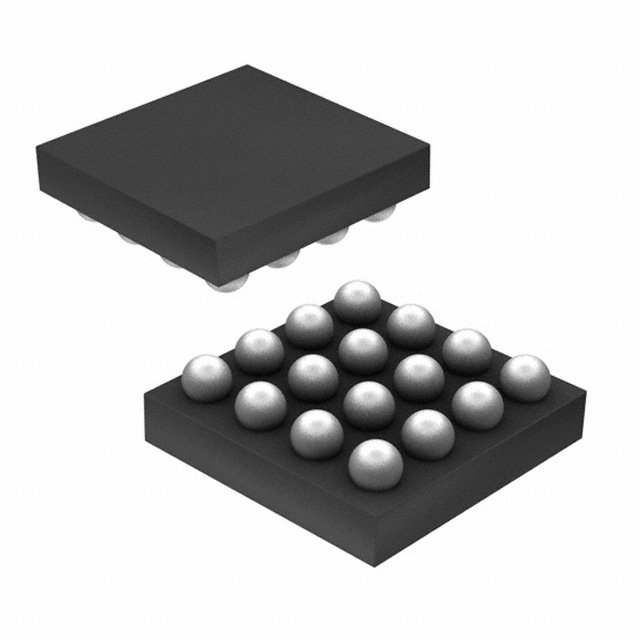

SSM2529ACBZ-R7
ActiveAnalog Devices
IC AMP CLASS D MONO 3.1W 16WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
SSM2529ACBZ-R7
ActiveAnalog Devices
IC AMP CLASS D MONO 3.1W 16WLCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSM2529ACBZ-R7 |
|---|---|
| Features | Short-Circuit, Thermal Protection, Depop |
| Max Output Power x Channels @ Load | 1, 3.1 W |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1-Channel (Mono) |
| Package / Case | WLCSP, 16-UFBGA |
| Supplier Device Package | 16-WLCSP (1.92x1.94) |
| Type | Class D |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.03 | |
| 10 | $ 3.97 | |||
| 25 | $ 3.43 | |||
| 100 | $ 2.82 | |||
| 250 | $ 2.53 | |||
| 500 | $ 2.34 | |||
| 1000 | $ 2.30 | |||
| Digi-Reel® | 1 | $ 6.03 | ||
| 10 | $ 3.97 | |||
| 25 | $ 3.43 | |||
| 100 | $ 2.82 | |||
| 250 | $ 2.53 | |||
| 500 | $ 2.34 | |||
| 1000 | $ 2.30 | |||
| Tape & Reel (TR) | 3000 | $ 2.30 | ||
Description
General part information
SSM2529 Series
Amplifier IC 1-Channel (Mono) Class D 16-WLCSP (1.92x1.94)
