612-87-314-41-001101

Active

PRECI-DIP SA

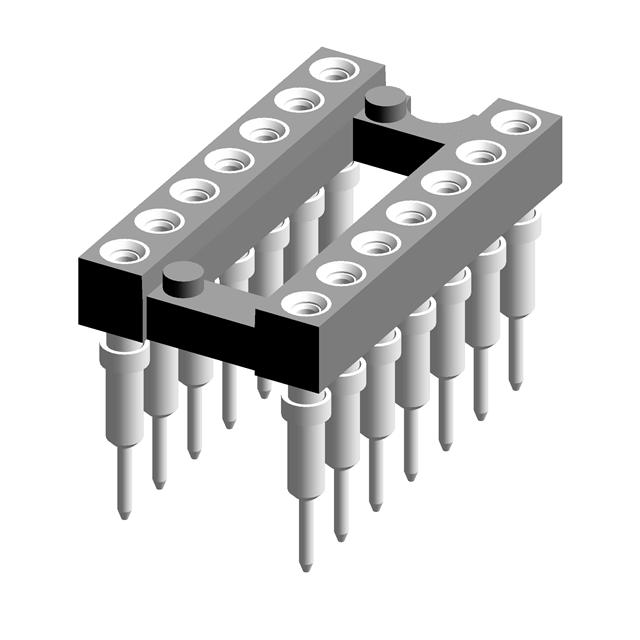

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

612-87-314-41-001101

Active

PRECI-DIP SA

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	612-87-314-41-001101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame, Carrier
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	7.39 mm
Termination Post Length [x]	0.291 in
Type	0.3 "
Type	7.62 mm
Type	DIP

612-87 Series

Part	Pitch - Post	Pitch - Post	Contact Resistance	Contact Material - Mating	Termination Post Length [x]	Termination Post Length [x]	Contact Finish Thickness - Mating	Mounting Type	Contact Material - Post [custom]	Housing Material	Type	Type	Type	Pitch - Mating	Pitch - Mating	Features	Contact Finish - Post	Termination	Contact Finish - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 612-87-950-41-001101	2.54 mm	0.1 in	10 mOhm	Beryllium Copper	7.39 mm	0.291 in	Flash	Through Hole	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	22.86 mm	DIP	0.9 in	0.1 in	2.54 mm	Carrier Open Frame	Tin	Solder	Gold	25	2	50	-55 °C	125 °C	UL94 V-0	1 A
PRECI-DIP SA 612-87-636-41-001101	2.54 mm	0.1 in	10 mOhm	Beryllium Copper	7.39 mm	0.291 in	Flash	Through Hole	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	15.24 mm	DIP	0.6 in	0.1 in	2.54 mm	Carrier Open Frame	Tin	Solder	Gold				-55 °C	125 °C	UL94 V-0	1 A	36
PRECI-DIP SA 612-87-648-41-001101	2.54 mm	0.1 in	10 mOhm	Beryllium Copper	7.39 mm	0.291 in	Flash	Through Hole	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	15.24 mm	DIP	0.6 in	0.1 in	2.54 mm	Carrier Open Frame	Tin	Solder	Gold				-55 °C	125 °C	UL94 V-0	1 A	48
PRECI-DIP SA 612-87-632-41-001101	2.54 mm	0.1 in	10 mOhm	Beryllium Copper	7.39 mm	0.291 in	Flash	Through Hole	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	15.24 mm	DIP	0.6 in	0.1 in	2.54 mm	Carrier Open Frame	Tin	Solder	Gold				-55 °C	125 °C	UL94 V-0	1 A		2 x 16	32
PRECI-DIP SA 612-87-424-41-001101	2.54 mm	0.1 in	10 mOhm	Beryllium Copper	7.39 mm	0.291 in	Flash	Through Hole	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10.16 mm	DIP	0.4 in	0.1 in	2.54 mm	Carrier Open Frame	Tin	Solder	Gold				-55 °C	125 °C	UL94 V-0	1 A	24
PRECI-DIP SA 612-87-428-41-001101	2.54 mm	0.1 in	10 mOhm	Beryllium Copper	7.39 mm	0.291 in	Flash	Through Hole	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10.16 mm	DIP	0.4 in	0.1 in	2.54 mm	Carrier Open Frame	Tin	Solder	Gold				-55 °C	125 °C	UL94 V-0	1 A	28
PRECI-DIP SA 612-87-964-41-001101	2.54 mm	0.1 in	10 mOhm	Beryllium Copper	7.39 mm	0.291 in	Flash	Through Hole	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	22.86 mm	DIP	0.9 in	0.1 in	2.54 mm	Carrier Open Frame	Tin	Solder	Gold				-55 °C	125 °C	UL94 V-0	1 A	64
PRECI-DIP SA 612-87-652-41-001101	2.54 mm	0.1 in	10 mOhm	Beryllium Copper	7.39 mm	0.291 in	Flash	Through Hole	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	15.24 mm	DIP	0.6 in	0.1 in	2.54 mm	Carrier Open Frame	Tin	Solder	Gold				-55 °C	125 °C	UL94 V-0	1 A
PRECI-DIP SA 612-87-314-41-001101	2.54 mm	0.1 in	10 mOhm	Beryllium Copper	7.39 mm	0.291 in	Flash	Through Hole	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	7.62 mm	DIP	0.3 "	0.1 in	2.54 mm	Carrier Open Frame	Tin	Solder	Gold				-55 °C	125 °C	UL94 V-0	1 A	14
PRECI-DIP SA 612-87-316-41-001101	2.54 mm	0.1 in	10 mOhm	Beryllium Copper	7.39 mm	0.291 in	Flash	Through Hole	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	7.62 mm	DIP	0.3 "	0.1 in	2.54 mm	Carrier Open Frame	Tin	Solder	Gold				-55 °C	125 °C	UL94 V-0	1 A	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2520	$ 0.83

Description

General part information

612-87 Series

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
