09200163101

Active

HARTING Technology Group

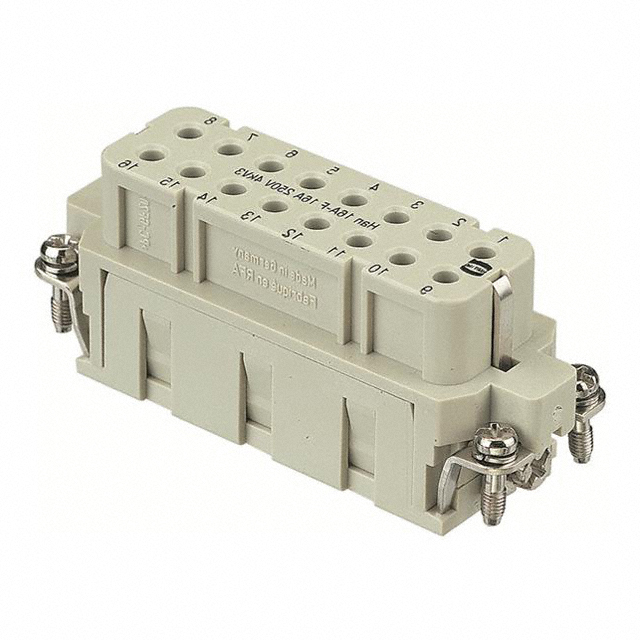

INSERT FEMALE 16POS+1GND CRIMP

Search across all available documentation for this part.

Active

HARTING Technology Group

INSERT FEMALE 16POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	09200163101

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	16+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Termination Style	Crimp
Voltage Rating	600 V

Part	Current Rating (Amps)	Connector Type	Material Flammability Rating	Termination Style	Contact Type	Voltage Rating	Size	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Gender	Number of Positions
HARTING Technology Group 09200163001	16 A	Insert without Contacts	UL94 V-0	Crimp	Han®	600 V	16 A	Polycarbonate (PC)	125 °C	-40 °C	Gray	Male	16+Ground
HARTING Technology Group 09200163101	16 A	Insert without Contacts	UL94 V-0	Crimp	Han®	600 V	16 A	Polycarbonate (PC)	125 °C	-40 °C	Gray	Female	16+Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 16+Ground Position Crimp
