175-015-112R151

Obsolete

MH Connectors

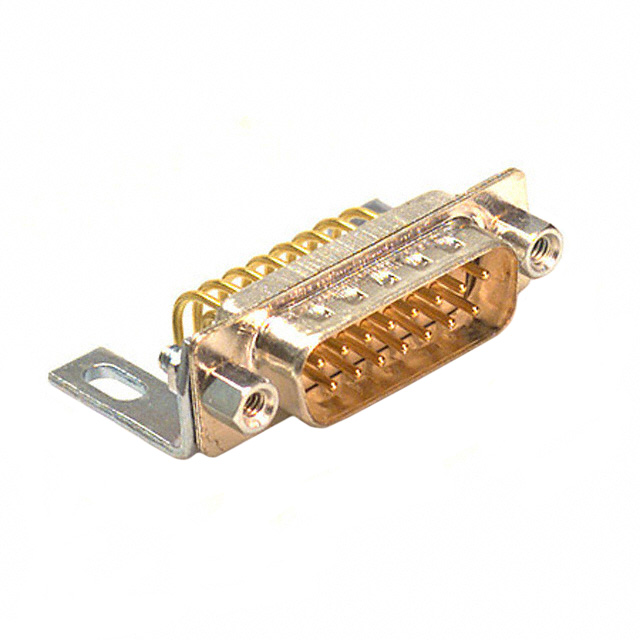

CONN D-SUB PLUG 15POS R/A SLDR

Search across all available documentation for this part.

Obsolete

MH Connectors

CONN D-SUB PLUG 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	175-015-112R151

Backset Spacing	0.454 in
Backset Spacing	11.53 mm
Color	Beige
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Features	Grounding Indents, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2
Termination	Solder

Part	Current Rating (Amps)	Material Flammability Rating	Termination	Connector Type	Contact Finish	Backset Spacing	Backset Spacing	Mounting Type	Number of Rows	Contact Material	Flange Feature	Number of Positions	Contact Type	Dielectric Material	Color	Features	Shell Size, Connector Layout	Connector Style	Contact Finish Thickness
MH Connectors 175-015-212R151	5 A	UL94 V-0	Solder	Receptacle Female Sockets	Gold	0.454 in	11.53 mm	Panel Mount Right Angle Through Hole	2	Brass	Female Screwlock (4-40) Mating Side	15	Signal	Polybutylene Terephthalate (PBT) Polyester	Beige	Mounting Brackets	2	D-Sub	Flash
MH Connectors 175-015-112R151	5 A	UL94 V-0	Solder	Male Pins Plug	Gold	0.454 in	11.53 mm	Panel Mount Right Angle Through Hole	2	Brass	Female Screwlock (4-40) Mating Side	15	Signal	Polybutylene Terephthalate (PBT) Polyester	Beige	Grounding Indents Mounting Brackets	2	D-Sub	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Position D-Sub Plug, Male Pins Connector
