3220-16-0300-00

Active

CnC Tech, LLC

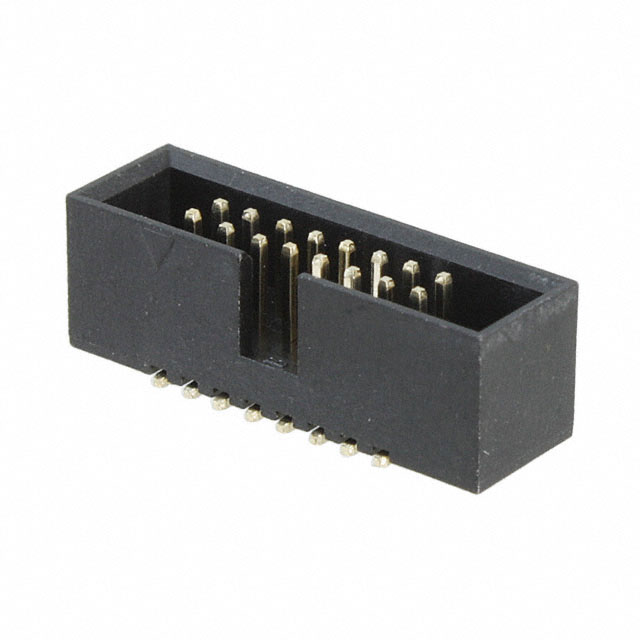

CONN HEADER SMD 16POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDC, Flat Ribbon Cable Mating Chart Soldering Guide 3X10,3X20,3221 Series +2

3220-16-0300-00

Active

CnC Tech, LLC

CONN HEADER SMD 16POS 1.27MM

Deep-Dive with AI

DocumentsIDC, Flat Ribbon Cable Mating Chart Soldering Guide 3X10,3X20,3221 Series +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3220-16-0300-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.4 mm
Insulation Height [z]	0.213 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

3220-16 Series

Part	Insulation Height	Insulation Height [z]	Contact Finish - Mating	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish - Post	Termination	Material Flammability Rating	Contact Shape	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Material	Fastening Type	Contact Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Insulation Material	Style	Shrouding	Features	Mounting Type	Voltage Rating	Insulation Height [z]	Contact Length - Post	Contact Length - Post
CnC Tech, LLC 3220-16-0300-00	5.4 mm	0.213 in	Gold	2	0.05 in	1.27 mm	Header	Black	Flash	Gold	Solder	UL94 V-0	Square	16	0.05 in	1.27 mm	Brass	Push-Pull	Male Pin	All	-40 °C	105 ░C	Flash	Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Shrouded - 4 Wall	Keying Slot	Surface Mount	50 VAC
CnC Tech, LLC 3220-16-0300-00-TR	5.4 mm	0.213 in	Gold	2	0.05 in	1.27 mm	Header	Black	Flash	Gold	Solder	UL94 V-0	Square	16	0.05 in	1.27 mm	Brass	Push-Pull	Male Pin	All	-40 °C	105 ░C	Flash	Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Shrouded - 4 Wall	Keying Slot Pick and Place	Surface Mount	50 VAC
CnC Tech, LLC 3220-16-0200-00		0.201 "	Gold	2	0.05 in	1.27 mm	Header	Black	Flash		Solder	UL94 V-0	Square	16	0.05 in	1.27 mm	Brass	Push-Pull	Male Pin	All	-40 °C	105 ░C		Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Shrouded - 4 Wall	Keying Slot	Through Hole Right Angle	50 VAC	5.1 mm	0.083 in	2.11 mm
CnC Tech, LLC 3220-16-0100-00	5.4 mm	0.213 in	Gold	2	0.05 in	1.27 mm	Header	Black	Flash		Solder	UL94 V-0	Square	16	0.05 in	1.27 mm	Brass	Push-Pull	Male Pin	All	-40 °C	105 ░C		Nylon 9T Polyamide (PA9T)	Board to Cable/Wire	Shrouded - 4 Wall	Keying Slot	Through Hole	50 VAC		0.083 in	2.11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.17
		10	$ 0.99
		80	$ 0.89
		440	$ 0.73
		2400	$ 0.59
		7200	$ 0.57
		12000	$ 0.53

Description

General part information

3220-16 Series

Connector Header Surface Mount 16 position 0.050" (1.27mm)

Documents

Technical documentation and resources

IDC, Flat Ribbon Cable Mating Chart

Datasheet

Soldering Guide 3X10,3X20,3221 Series

IDC Header Mating Guide

Datasheet
