1532213-1

Active

TE Connectivity Aerospace, Defense and Marine

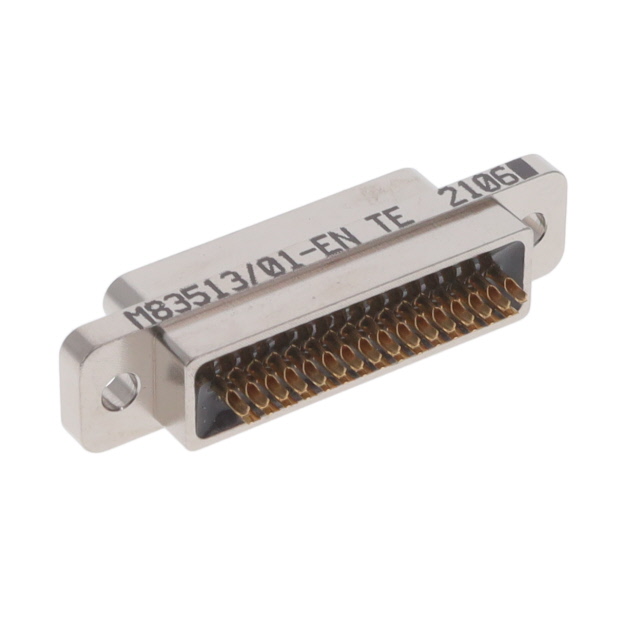

CONN MICRO-D PLUG 31POS SLDR CUP

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN MICRO-D PLUG 31POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	1532213-1

Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Current Rating (Amps)	3 A
Features	Reverse Layout
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	31
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Electroless, Metal, Nickel Plated

Part	Shell Material, Finish	Contact Finish	Features	Connector Style	Contact Type	Flange Feature	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Current Rating (Amps)	Number of Rows
TE Connectivity Aerospace, Defense and Marine 1532213-1	Electroless Metal Nickel Plated	Gold	Reverse Layout	D-Type Micro-D	Signal	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	-55 °C	125 °C	31	50 µin	1.27 µm	Male Pins Plug	3 A	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

31 Position D-Type, Micro-D Plug, Male Pins Connector
