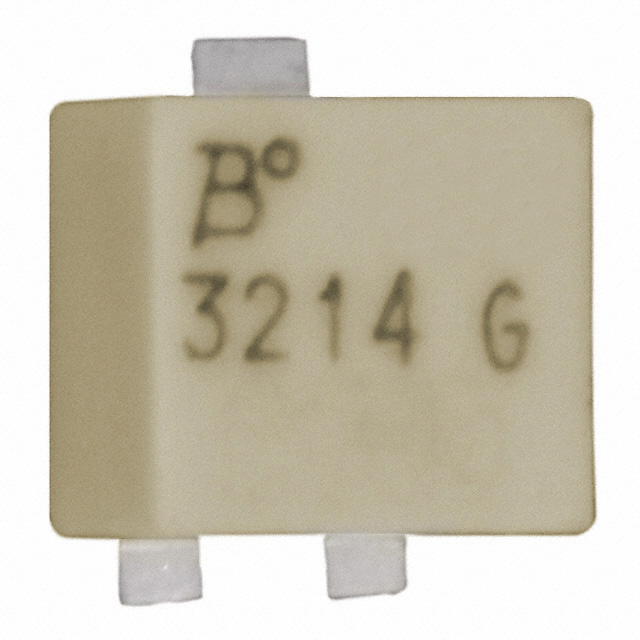

3214G-1-201E

Active

Bourns Inc.

TRIMMER, 200 OHM, SURFACE MOUNT, 5 TURNS

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER, 200 OHM, SURFACE MOUNT, 5 TURNS

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Adjustment Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistance	Power (Watts)	Power (Watts)	Termination Style	Temperature Coefficient	Resistive Material	Mounting Type	Tolerance
Bourns Inc. 3214G-1-501E	5	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	500 Ohms	0.25 W	250 mW	Gull Wing	100 ppm/°C	Cermet	Surface Mount	10 %
Bourns Inc. 3214G-1-200E	5	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	20 Ohms	0.25 W	250 mW	Gull Wing	100 ppm/°C	Cermet	Surface Mount	10 %
Bourns Inc. 3214G-1-201E	5	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	200 Ohms	0.25 W	250 mW	Gull Wing	100 ppm/°C	Cermet	Surface Mount	10 %
Bourns Inc. 3214G-1-205E	5	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	2 MOhms	0.25 W	250 mW	Gull Wing	100 ppm/°C	Cermet	Surface Mount	10 %
Bourns Inc. 3214G-1-104E	5	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in	100 kOhms	0.25 W	250 mW	Gull Wing	100 ppm/°C	Cermet	Surface Mount	10 %
Bourns Inc. 3214G-1-504E	5	Side Adjustment	0.189 "	3.5 mm	4.8 mm	0.138 in		0.25 W	250 mW	Gull Wing	100 ppm/°C	Cermet	Surface Mount	10 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 1.77
Newark	Each (Supplied on Cut Tape)	250	$ 1.99

General part information

200 Ohms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 5.0 Turn Side Adjustment
