ELFH09250E

Active

AMPHENOL PCD

TERM BLOCK HDR 9POS VERT 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

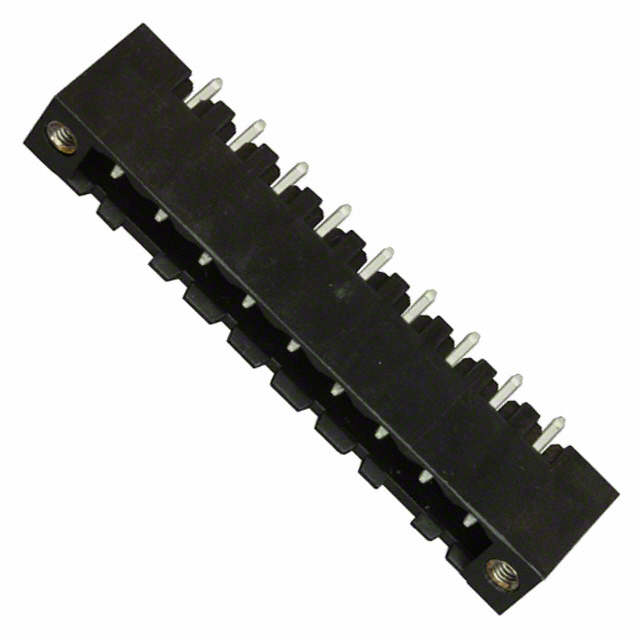

ELFH09250E

Active

AMPHENOL PCD

TERM BLOCK HDR 9POS VERT 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH09250E

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Features	Mating Flange
Header Orientation	Vertical
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	8.1 mm
Insulation Height	0.319 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	9
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

ELFH092 Series

Part	Contact Tail Length	Contact Tail Length	Type	Contact Mating Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Number of Levels	Number of Positions	Contact Material	Termination Style	Voltage - UL	Material Flammability Rating	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height [z]	Positions Per Level	Header Orientation	Color	Features	Insulation Height	Operating Temperature
AMPHENOL PCD ELFH09260	3.94 mm	0.155 in	Header Male Pins Shrouded (2 Side)	Tin	Through Hole	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	1	9	Brass	Solder	300 V	UL94 V-0	0.2 in	5.08 mm	12.07 mm	0.475 in	9	Vertical	Black
AMPHENOL PCD ELFH0929G
AMPHENOL PCD ELFH0923GE
AMPHENOL PCD ELFH09250E			Header Male Pins Shrouded (4 Side)	Tin	Through Hole	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	1	9	Brass	Solder	300 V	UL94 V-0	0.2 in	5.08 mm	8.1 mm		9	Vertical	Black	Mating Flange	0.319 in
AMPHENOL PCD ELFH0923G
AMPHENOL PCD ELFH0921G
AMPHENOL PCD ELFH09210			Header Male Pins Shrouded (4 Side)	Tin	Through Hole	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	1	9	Brass	Solder	300 V	UL94 V-0	0.2 in	5.08 mm	8.1 mm		9	90° Right Angle	Black		0.319 in
AMPHENOL PCD ELFH09250J	3.94 mm	0.155 in	Header Male Pins Shrouded (4 Side)	Tin-Lead	Through Hole			Polybutylene Terephthalate (PBT)	1	9	Copper Alloy	Solder	300 V	UL94 V-0	0.2 in	5.08 mm	12.7 mm		9	Vertical	Black	Ejectors	0.5 in	105 C
AMPHENOL PCD ELFH09220	3.94 mm	0.155 in	Header Male Pins Shrouded (2 Side)	Tin	Through Hole	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	1	9	Brass	Solder	300 V	UL94 V-0	0.2 in	5.08 mm	8.1 mm		9	90° Right Angle	Black		0.319 in
AMPHENOL PCD ELFH09280	3.94 mm	0.155 in	Header Male Pins Shrouded (4 Side)	Tin	Through Hole	-40 °C	105 ░C	Polyamide (PA46) Nylon 4/6	1	9	Brass	Solder	300 V	UL94 V-0	0.2 in	5.08 mm	12.07 mm	0.475 in	9	Vertical	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.09

Description

General part information

ELFH092 Series

9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
