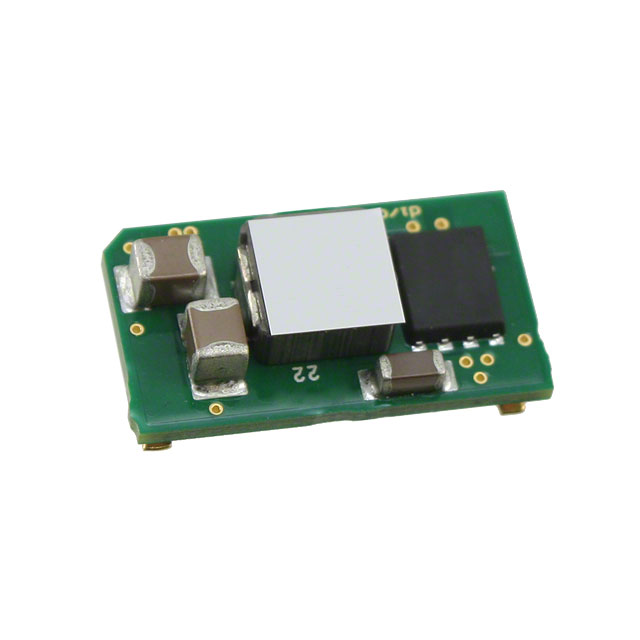

YM12S05-G
ActiveEOS Power India Private Ltd
DC DC CONVERTER 0.7525-5.5V 28W
Deep-Dive with AI
Search across all available documentation for this part.
YM12S05-G
ActiveEOS Power India Private Ltd
DC DC CONVERTER 0.7525-5.5V 28W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YM12S05-G |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 92 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SMD Module |
| Power (Watts) | 28 W |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 9.6 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.7525 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.50 | |
| 5 | $ 16.37 | |||
| 10 | $ 16.25 | |||
| 25 | $ 16.00 | |||
| 50 | $ 15.50 | |||
| 100 | $ 14.00 | |||
| Digi-Reel® | 1 | $ 16.50 | ||
| 5 | $ 16.37 | |||
| 10 | $ 16.25 | |||
| 25 | $ 16.00 | |||
| 50 | $ 15.50 | |||
| 100 | $ 14.00 | |||
| Tape & Reel (TR) | 200 | $ 14.00 | ||
| 400 | $ 13.75 | |||
| 600 | $ 13.50 | |||
Description
General part information
YM12S05 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.7525 ~ 5.5V 5A 9.6V - 14V Input
Documents
Technical documentation and resources
No documents available
