USB4120-03-C - USB4120-03-C

USB4120-03-C

Active
GCT

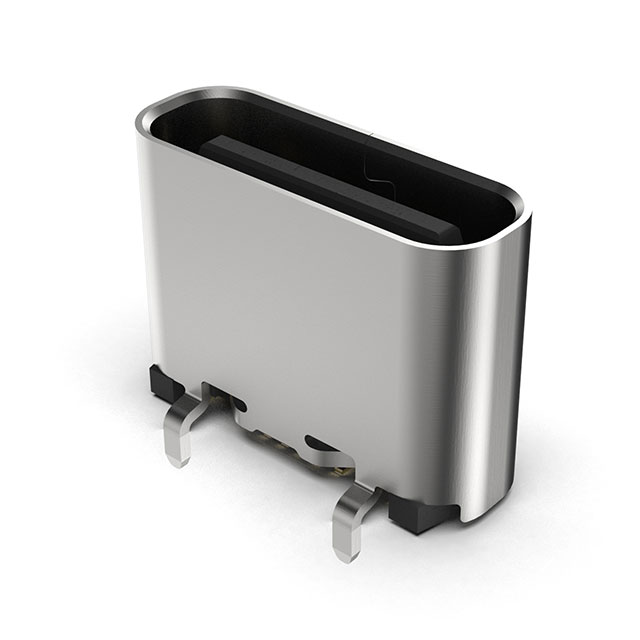

USB CONNECTOR, USB TYPE C, USB 2.0, RECEPTACLE, 16 POSITIONS, SURFACE MOUNT, VERTICAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUSB Type C Selection GuideUSB4120-03-C Spec+3
USB4120-03-C - USB4120-03-C

USB4120-03-C

Active
GCT

USB CONNECTOR, USB TYPE C, USB 2.0, RECEPTACLE, 16 POSITIONS, SURFACE MOUNT, VERTICAL

Deep-Dive with AI

DocumentsUSB Type C Selection GuideUSB4120-03-C Spec+3

Technical Specifications

Parameters and characteristics for this part

SpecificationUSB4120-03-C
Connector TypeUSB-C (USB TYPE-C)
Contact FinishGold
Current Rating (Amps)5 A
FeaturesBoard Guide, Solder Retention Tab
GenderReceptacle
Insulation ColorBlack
Material Flammability RatingUL94 V-0
Mating Cycles20000
Mounting FeatureVertical
Mounting TypeSurface Mount, Through Hole
Number of Contacts24
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Shell/Shielding MaterialSteel (SUS304)
ShieldingShielded
SpecificationsUSB 2.0
TerminationSolder
Voltage - Rated [custom]48 VDC
