16_SHV-50-4-1/133_NE

Active

Huber+Suhner, Inc.

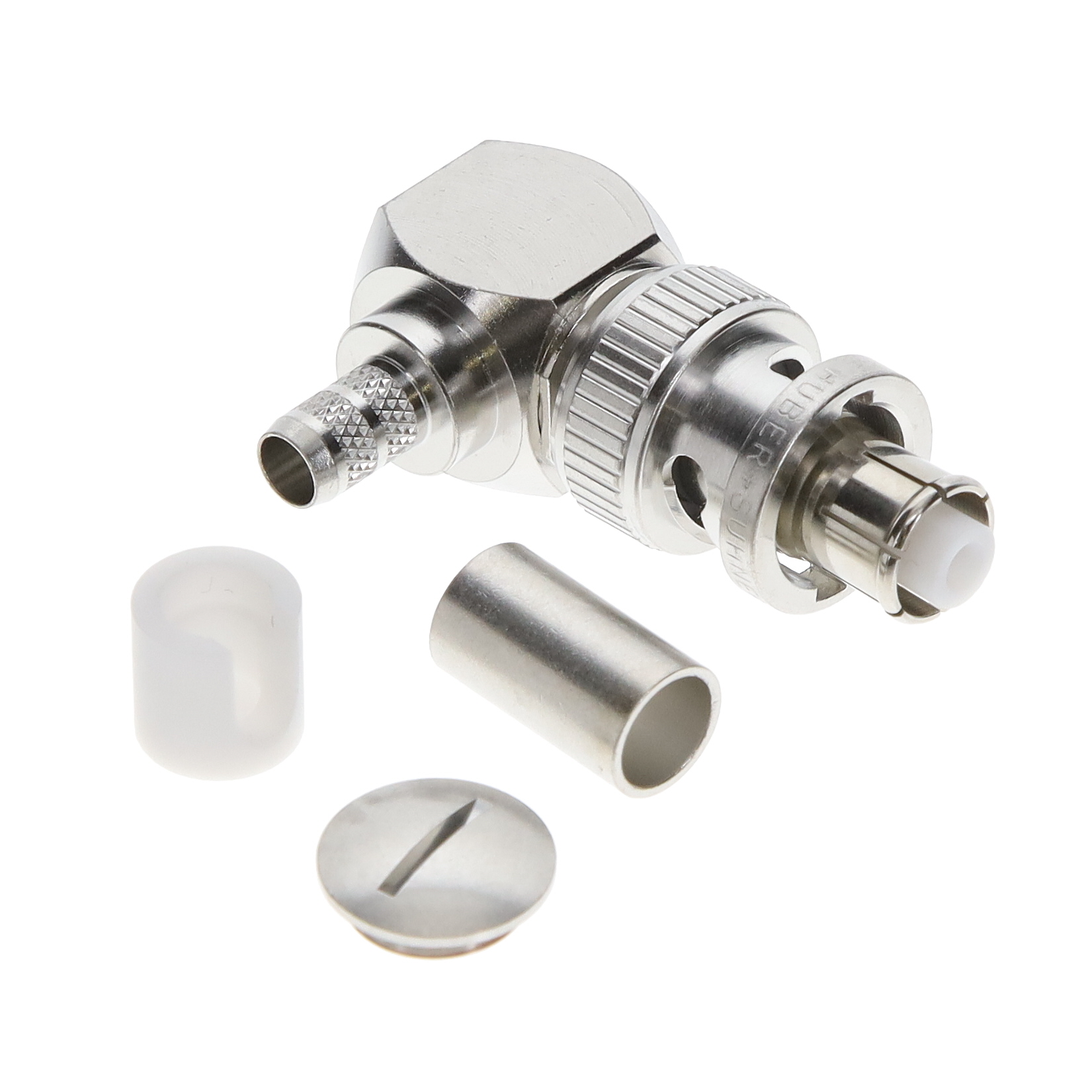

RF COAX CONN, R-A SHV PLUG, 50 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF COAX CONN, R-A SHV PLUG, 50 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	16_SHV-50-4-1/133_NE

Body Material	Brass
Cable Group	RG-59
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SHV
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	300 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Center Contact Material	Connector Style	Dielectric Material	Fastening Type	Mating Cycles	Connector Type	Contact Termination	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Cable Group	Frequency - Max [Max]	Body Material	Mounting Type	Center Contact Plating	Impedance
Huber+Suhner, Inc. 16_SHV-50-4-1/133_NE	Beryllium Copper	SHV	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Bayonet Lock	500	Female Socket Plug	Solder	1	-65 ░C	165 °C	Crimp	RG-59	300 MHz	Brass	Free Hanging (In-Line) Right Angle	Gold	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SHV Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
