36PR100KLF

Active

TT Electronics/BI

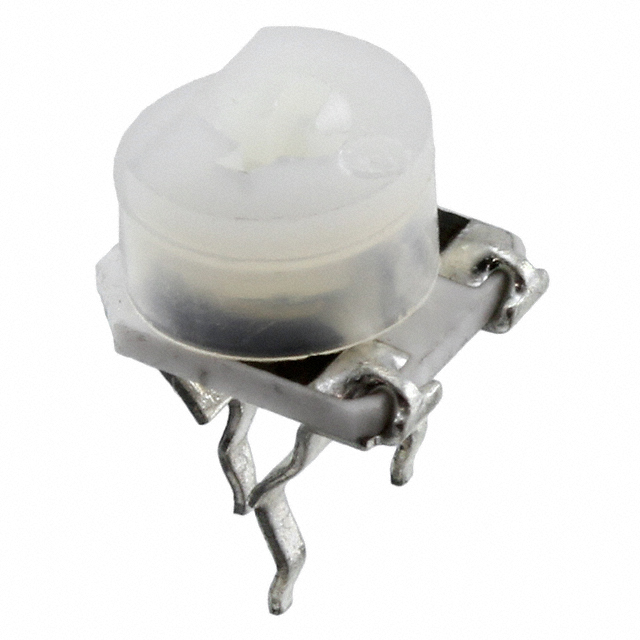

TRIMMER 100K OHM 0.3W PC PIN TOP

Search across all available documentation for this part.

Active

TT Electronics/BI

TRIMMER 100K OHM 0.3W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Resistance	Resistive Material	Adjustment Type	Mounting Type	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Tolerance	Termination Style	Temperature Coefficient
TT Electronics/BI 36PR50KLF	50 kOhms	Cermet	Top Adjustment	Through Hole	300 mW	0.3 W	0.323 in	6.8 mm	8.2 mm	0.268 in	1	20 %	PC Pins	250 ppm/°C
TT Electronics/BI 36PR5KLF	5 kOhms	Cermet	Top Adjustment	Through Hole	300 mW	0.3 W	0.323 in	6.8 mm	8.2 mm	0.268 in	1	20 %	PC Pins	250 ppm/°C
TT Electronics/BI 36PR20KLF	20 kOhms	Cermet	Top Adjustment	Through Hole	300 mW	0.3 W	0.323 in	6.8 mm	8.2 mm	0.268 in	1	20 %	PC Pins	250 ppm/°C
TT Electronics/BI 36PR100KLF	100 kOhms	Cermet	Top Adjustment	Through Hole	300 mW		0.303 in	6.8 mm	7.7 mm	0.268 in	1	20 %	PC Pins	250 ppm/°C
TT Electronics/BI 36PR200KLF	200000 Ohms	Cermet	Top Adjustment	Through Hole	300 mW	0.3 W	0.323 in	6.8 mm	8.2 mm	0.268 in	1	20 %	PC Pins	250 ppm/°C
TT Electronics/BI 36PR500LF	500 Ohms	Cermet	Top Adjustment	Through Hole	300 mW	0.3 W	0.323 in	6.8 mm	8.2 mm	0.268 in	1	20 %	PC Pins	250 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 kOhms 0.3W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment

Technical documentation and resources
