CDSA15Y1W
ActiveChromeLED
DISPLAY 7SEG 1.50" SGL YELLOW 10
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDSA15Y1W
ActiveChromeLED
DISPLAY 7SEG 1.50" SGL YELLOW 10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDSA15Y1W |
|---|---|
| Color | Yellow |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 38.1 mm |
| Digit/Alpha Size | 1.5 in |
| Display Type | 7-Segment |
| Millicandela Rating | 8 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-DIP |
| Power Dissipation (Max) [Max] | 50 mW |
| Size / Dimension [y] | 1.303 in |
| Size / Dimension [y] | 33.1 mm |
| Size / Dimension [z] | 1.846 in, 0.492 " |
| Size / Dimension [z] | 12.5 mm, 46.9 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.98 | |
Description
General part information
CDSA15 Series

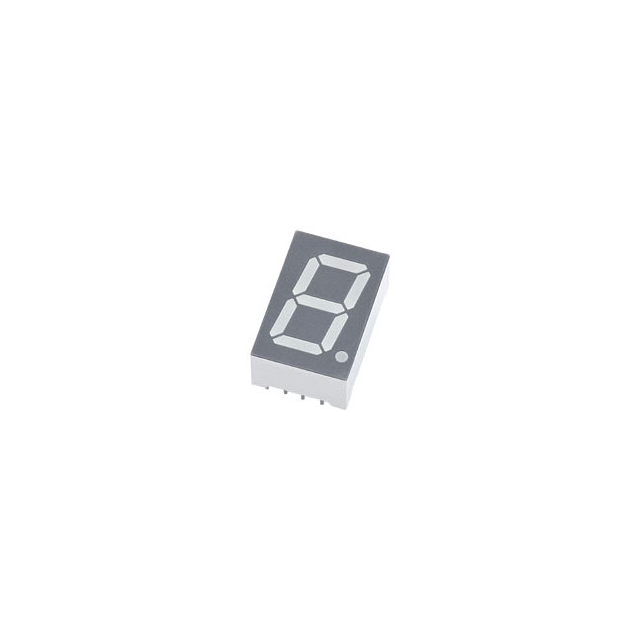

Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2V 10mA 1.846" H x 1.303" W x 0.492" D (46.90mm x 33.10mm x 12.50mm) 10-DIP
