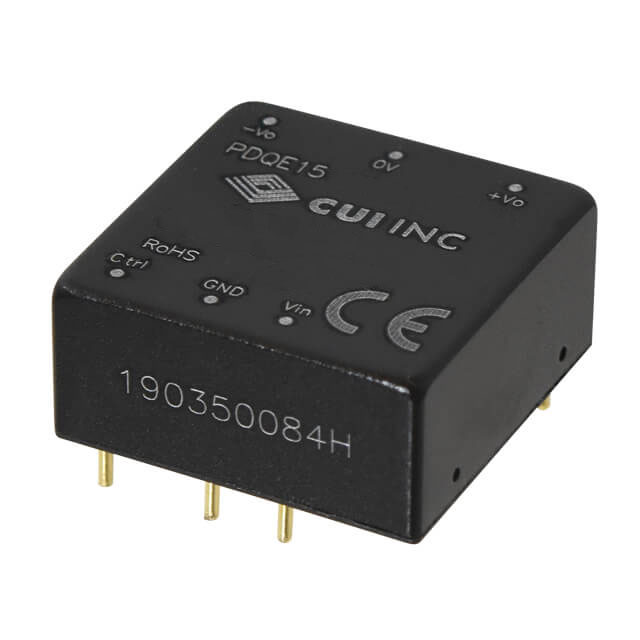

PDQE15-Q48-D12-D
CUI Inc.
DC DC CONVERTER +/-12V 15W
Deep-Dive with AI
Search across all available documentation for this part.
PDQE15-Q48-D12-D
CUI Inc.
DC DC CONVERTER +/-12V 15W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PDQE15-Q48-D12-D |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EN |
| Current - Output (Max) | 625 mA |
| Current - Output (Max) | 625 mA |
| Efficiency | 90 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.46 in |
| Size / Dimension [z] | 11.7 mm |
| Standard Number | 55024, 55032 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 24.59 | |
| 5 | $ 23.19 | |||
| 10 | $ 22.61 | |||
| 25 | $ 21.86 | |||
| 50 | $ 21.31 | |||
| 100 | $ 20.78 | |||
Description
General part information
PDQE15 Series
Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 18V - 75V Input
