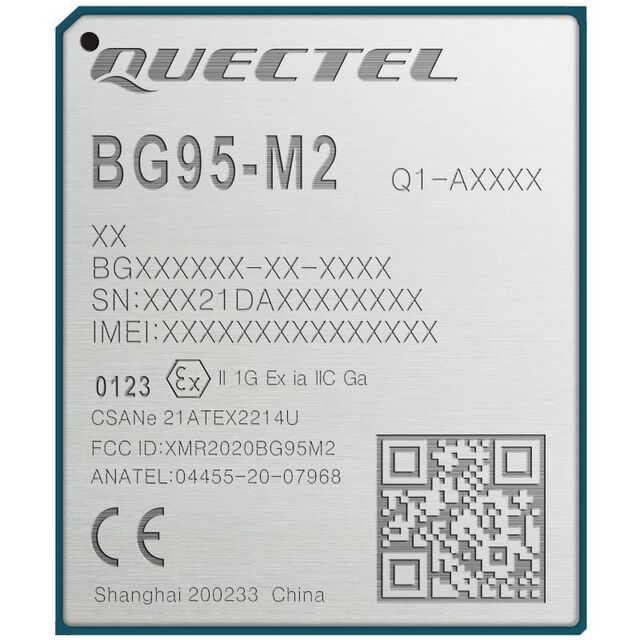

BG95M2LATEA-64-SGNS

Active

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Search across all available documentation for this part.

BG95M2LATEA-64-SGNS

Active

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BG95M2LATEA-64-SGNS

Antenna Type	Antenna Not Included
Current - Receiving	21.2 mA
Data Rate	1.119 Mbps
Mounting Type	Surface Mount
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Package / Case	Module
Power - Output	21 dBm
Protocol	GLONASS, GPS, LTE, Beidou, Galileo, GNSS
RF Family/Standard	Cellular, Navigation
Serial Interfaces	UART, I2C, GPIO, PCM, USB
Voltage - Supply [Max]	4.8 V
Voltage - Supply [Min]	2.6 V

BG95 Series

Part	Contents	Frequency	Utilized IC / Part	Serial Interfaces	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Output	Mounting Type	Current - Receiving	Package / Case	Antenna Type	Data Rate	RF Family/Standard	Protocol	Operating Temperature [Min]	Operating Temperature [Max]
Quectel BG95M3LATEA-64-SGNS*IOT	Board(s)	850 MHz 900 MHz 1800 MHz 1900 MHz	BG95
Quectel BG95M2LATEA-64-SGNS				GPIO I2C PCM UART USB	2.6 V	4.8 V	21 dBm	Surface Mount	21.2 mA	Module	Antenna Not Included	1.119 Mbps	Cellular Navigation	Beidou Galileo GLONASS GNSS GPS LTE	-35 °C	75 ░C
Quectel BG95M1LA-64-SGNS			MDM9205-2					Surface Mount		Module
Quectel BG95M5LA-64-SGNS		850 MHz 900 MHz 1800 MHz 1900 MHz		GPIO I2C PCM UART USB	3.3 V	4.3 V	32 dBm	Surface Mount		Module	Antenna Not Included	1.119 Mbps	Cellular Navigation	Beidou EGDE Galileo GLONASS GNSS GPS GSM LTE	-35 °C	75 ░C
Quectel BG95M2LA-64-SGNS								Surface Mount		Module
Quectel BG95N1LA-64-SGNS				GPIO I2C PCM UART USB	2.6 V	4.8 V	21 dBm	Surface Mount		Module	Antenna Not Included	158.5 kbps	Cellular Navigation	Beidou Galileo GLONASS GNSS GPS LTE	-35 °C	75 ░C
Quectel BG95N1LATEA-64-SGNS				GPIO I2C PCM UART USB	2.6 V	4.8 V	21 dBm	Surface Mount		Module	Antenna Not Included	158.5 kbps	Cellular Navigation	Beidou Galileo GLONASS GNSS GPS LTE	-35 °C	75 ░C
Quectel BG95M3LA-MINIPCIE		850 MHz 900 MHz 1800 MHz 1900 MHz		GPIO I2C PCM UART USB	3.3 V	4.3 V	21 dBm	mini PCIe	18.9 mA	Module	Antenna Not Included	1.119 Mbps	Cellular Navigation	Beidou EGDE Galileo GLONASS GNSS GPS GSM LTE	-35 °C	75 ░C
Quectel BG95M3LATEA-64-SGNS		850 MHz 900 MHz 1800 MHz 1900 MHz		GPIO I2C PCM UART USB	3.3 V	4.3 V	21 dBm	Surface Mount	18.9 mA	Module	Antenna Not Included	1.119 Mbps	Cellular Navigation	Beidou EGDE Galileo GLONASS GNSS GPS GSM LTE	-35 °C	75 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.50

Description

General part information

BG95 Series

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, LTE Transceiver Module Antenna Not Included Surface Mount

Documents

Technical documentation and resources

No documents available
