8380-4PG-321

Active

Conxall/Switchcraft

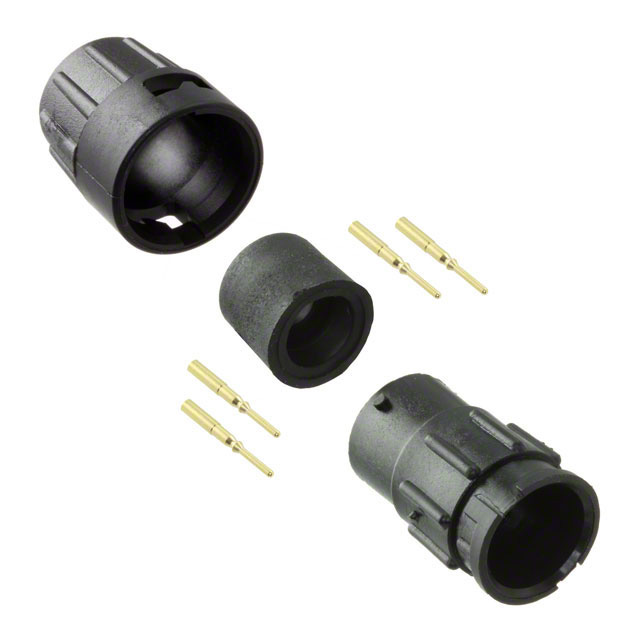

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8380-4PG-321

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8380-4PG-321

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	5.33 mm
Cable Opening [Min] [diameter]	0.21 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

8380-4PG Series

Part	Current Rating (Amps)	Primary Material	Fastening Type	Connector Type	Color	Ingress Protection	Voltage Rating	Orientation	Backshell Material, Plating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Number of Positions	Contact Material	Contact Finish - Mating	Features	Termination	Shielding	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 8380-4PG-522	Varies by Wire Gauge	Plastic	Bayonet Lock	Male Pins Receptacle	Black	Weathertight	600 V	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	-40 °C	115 °C	Automotive Communication Systems Instrumentation	6.35 mm	0.25 in	0.22 in	5.59 mm	4	Brass	Gold	Backshell	Crimp	Unshielded
Conxall/Switchcraft 8380-4PG-513	Varies by Wire Gauge	Plastic	Bayonet Lock	Male Pins Receptacle	Black	Weathertight	600 V	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	-40 °C	115 °C	Automotive Communication Systems Instrumentation					4	Brass	Gold	Backshell	Crimp	Unshielded	0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 8380-4PG-321	Varies by Wire Gauge	Plastic	Bayonet Lock	Male Pins Receptacle	Black	Weathertight	600 V	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	-40 °C	115 °C	Automotive Communication Systems Instrumentation		0.23 in	0.21 in	5.33 mm	4	Brass	Gold	Backshell	Crimp	Unshielded			5.84 mm
Conxall/Switchcraft 8380-4PG-516	Varies by Wire Gauge	Plastic	Bayonet Lock	Male Pins Receptacle	Black	Weathertight	600 V	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	-40 °C	115 °C	Automotive Communication Systems Instrumentation					4	Brass	Gold	Backshell	Crimp	Unshielded				0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 8380-4PG-318	Varies by Wire Gauge	Plastic	Bayonet Lock	Male Pins Receptacle	Black	Weathertight	600 V	Keyed	Nylon Polyamide (PA)	Free Hanging (In-Line)	-40 °C	115 °C	Automotive Communication Systems Instrumentation					4	Brass	Gold	Backshell	Crimp	Unshielded				0.18 in	0.2 in	4.57 mm	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.91
		10	$ 5.32
		25	$ 5.01
		50	$ 4.88
		100	$ 4.75
		300	$ 4.53

Description

General part information

8380-4PG Series

4 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources
