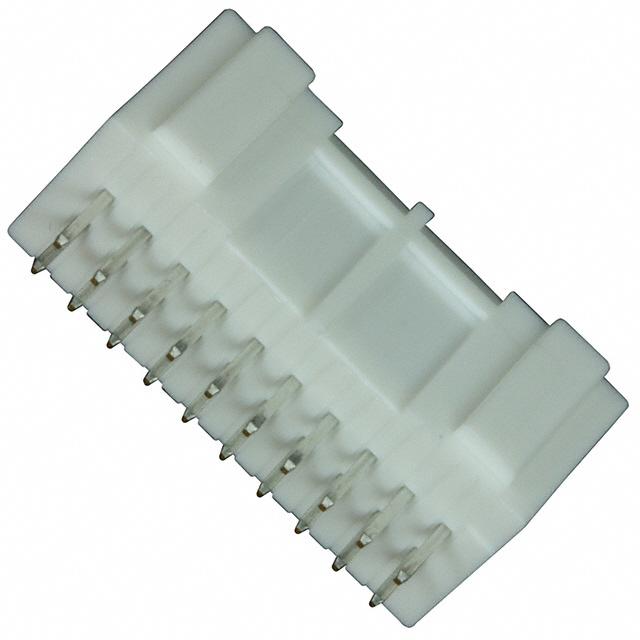

B20B-PADSS

Active

JST Sales America Inc.

CONN HEADER VERT 20POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 20POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B20B-PADSS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.402 in
Insulation Height	10.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Style	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Type	Insulation Color	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Post	Contact Shape	Insulation Material	Shrouding	Mated Stacking Heights	Fastening Type	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Termination	Mounting Type	Features
JST Sales America Inc. B20B-PADSS	250 VDC	All	0.079 in	2 mm	Board to Cable/Wire	0.079 in	2 mm	Copper Alloy	Male Pin	Natural	0.402 in	10.2 mm	3 A	Tin	Square	Polyamide (PA66) Nylon 6/6 Glass Filled	Shrouded - 4 Wall	12.4 mm	Locking Ramp	Header	20	-25 °C	85 °C	UL94 V-0	0.134 in	3.4 mm	2	Solder	Through Hole
JST Sales America Inc. B20B-PADSS-1F	250 VDC	All	0.079 in	2 mm	Board to Cable/Wire	0.079 in	2 mm	Copper Alloy	Male Pin	Natural	0.402 in	10.2 mm	3 A	Tin	Square	Polyamide (PA66) Nylon 6/6 Glass Filled	Shrouded - 4 Wall	12.4 mm	Locking Ramp	Header	20	-25 °C	85 °C	UL94 V-0	0.134 in	3.4 mm	2	Solder	Through Hole	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 20 position 0.079" (2.00mm)
