1438D

Active

Hammond Manufacturing

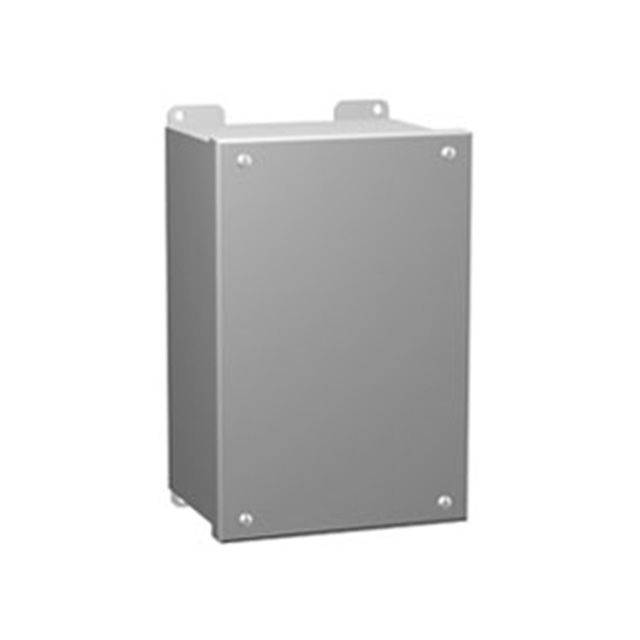

BOX STEEL GRAY 10"L X 4"W

Deep-Dive with AI

Search across all available documentation for this part.

1438D

Active

Hammond Manufacturing

BOX STEEL GRAY 10"L X 4"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1438D

Area (L x W)	258 cm²
Area (L x W)	40 in²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Height [z]	120.65 mm
Height [z]	4.75 in
Material	Metal, Steel
Ratings	IP54, UL-508, NEMA 13, NEMA 12
Size / Dimension [x]	10 in
Size / Dimension [x]	254 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Thickness	14 Gauge
Weight	2.3 kg
Weight	5 lbs

1438 Series

Part	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Thickness	Height [z]	Height [z]	Weight	Weight	Design	Container Type	Area (L x W)	Area (L x W)	Material	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1438D	Gray	10 in	4 "	254 mm	101.6 mm	IP54 NEMA 12 NEMA 13 UL-508	14 Gauge	120.65 mm	4.75 in	2.3 kg	5 lbs	Hinged Door Lid	Box	258 cm²	40 in²	Metal Steel
Hammond Manufacturing 1438C	Gray	8 "	4 "	203.2 mm	101.6 mm	IP54 NEMA 12 NEMA 13 UL-508	14 Gauge	120.65 mm	4.75 in	2.3 kg	5 lbs	Hinged Door Lid	Box	206 cm²	32 in²	Metal Steel
Hammond Manufacturing 1438S	Gray	11.75 in	10.75 in	298.45 mm	273.05 mm	IP54 NEMA 12 NEMA 13 UL-508	14 Gauge	120.65 mm	4.75 in	5 kg	11 lbs	Hinged Door Lid	Box	813 cm²	126 in²	Metal Steel
Hammond Manufacturing 1438A	Gray	4 in	4 "	101.6 mm	101.6 mm	IP54 NEMA 12 NEMA 13 UL-508	14 Gauge	120.65 mm	4.75 in	1.4 kg	3.1 lbs	Cover Included	Box	103 cm˛	16 in˛	Metal Steel
Hammond Manufacturing 1438H	Gray	9.5 "	6.25 "	241.3 mm	158.75 mm	IP54 NEMA 12 NEMA 13 UL-508	14 Gauge	120.65 mm	4.75 in	2.3 kg	5 lbs	Hinged Door Lid	Box	383 cm²	59.4 in²	Metal Steel
Hammond Manufacturing 1438K	Gray	9.5 "	8.5 "	241.3 mm	215.9 mm	IP54 NEMA 12 NEMA 13 UL-508	14 Gauge	120.65 mm	4.75 in	3.2 kg	7 lbs	Hinged Door Lid	Box	521 cm²	80.8 in²	Metal Steel
Hammond Manufacturing 1438F	Gray	7.5 in	6.25 "	190.5 mm	158.75 mm	IP54 NEMA 12 NEMA 13 UL-508	14 Gauge	120.65 mm	4.75 in	2.3 kg	5 lbs	Hinged Door Lid	Box			Metal Steel	46.9 in²	303 cm²
Hammond Manufacturing 1438V	Gray	14 in	10.75 in	355.6 mm	273.05 mm	IP54 NEMA 12 NEMA 13 UL-508	14 Gauge	120.65 mm	4.75 in	5 kg	11 lbs	Hinged Door Lid	Box	974 cm²	151 in²	Metal Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 107.56
		5	$ 100.39
		10	$ 98.60
		25	$ 96.81
		50	$ 95.37
		100	$ 93.22

Description

General part information

1438 Series

Box Metal, Steel Gray Hinged Door, Lid 10.000" L x 4.000" W (254.00mm x 101.60mm) X 4.750" (120.65mm)

Documents

Technical documentation and resources

No documents available
