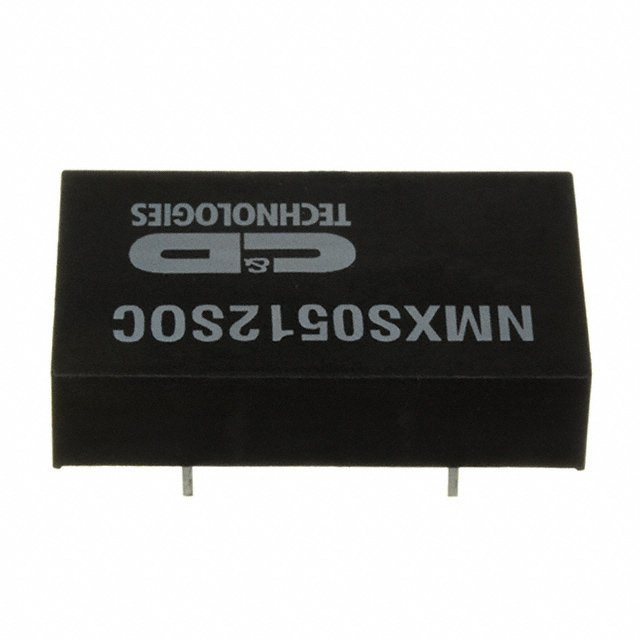

NMXS0512SOC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 12V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMXS0512SOC
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 12V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NMXS0512SOC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 470 mA |
| Efficiency | 65 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 40.4 mm |
| Size / Dimension [x] | 1.59 in |
| Size / Dimension [y] | 23.6 mm |
| Size / Dimension [y] | 0.93 in |
| Size / Dimension [z] | 9.9 mm |
| Size / Dimension [z] | 0.39 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NMXS05 Series
Isolated Module DC DC Converter 1 Output 12V 470mA 4.5V - 5.5V Input
