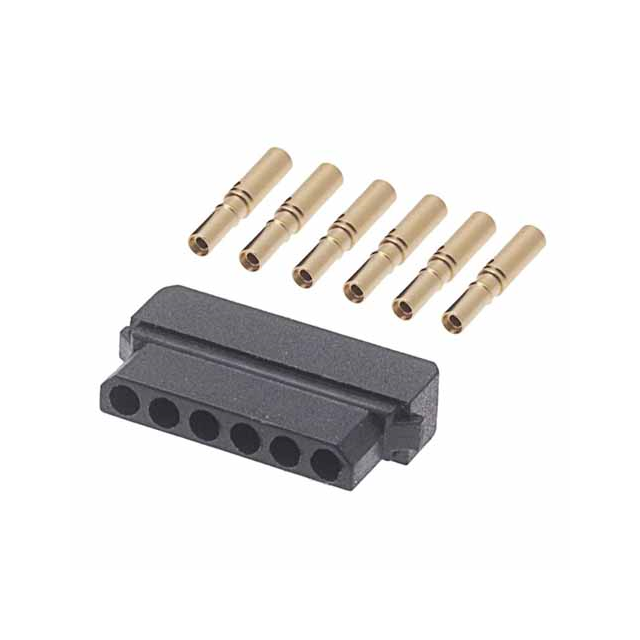

M80-8450645
ActiveHarwin Inc.
BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
M80-8450645
ActiveHarwin Inc.
BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8450645 |
|---|---|
| Cable Termination | Crimp |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
| Wire Type | Discrete |
M80-845 Series
| Part | Connector Type | Number of Positions | Mounting Type | Contact Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Color | Number of Rows | Wire Type | Pitch [x] | Pitch [x] | Fastening Type | Cable Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Receptacle | 6 | Free Hanging (In-Line) | Female Socket | Gold | 0.3 Ám | 11.8 Áin | 24 AWG | 28 AWG | Black | 1 | Discrete | 0.079 in | 2 mm | Locking Ramp | Crimp |
Harwin Inc. | Receptacle | 7 | Free Hanging (In-Line) | Female Socket | Gold | 0.3 Ám | 11.8 Áin | 24 AWG | 28 AWG | Black | 1 | Discrete | 0.079 in | 2 mm | Locking Ramp | Crimp |
Harwin Inc. | Receptacle | Free Hanging (In-Line) | Female Socket | Gold | 0.3 Ám | 11.8 Áin | 24 AWG | 28 AWG | Black | 1 | Discrete | 0.079 in | 2 mm | Locking Ramp | Crimp | |
Harwin Inc. | Receptacle | 2 | Free Hanging (In-Line) | Female Socket | Gold | 0.3 Ám | 11.8 Áin | 24 AWG | 28 AWG | Black | 1 | Discrete | 0.079 in | 2 mm | Latch Lock | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-845 Series
6 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
