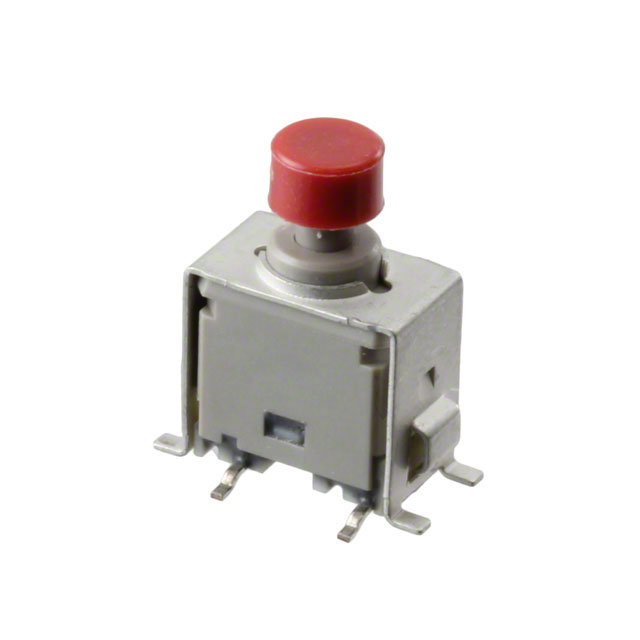

G3B15AB-S-YC

Active

NKK Switches

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Features	Actuator Marking	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Switch Function	Color - Actuator/Cap	Electrical Life	Actuator Type	Current Rating (Amps)	Circuit	Termination Style	Type
NKK Switches G3B15AB-S-XA	28 V	Process Sealed	No Marking	Surface Mount	-30 ░C	85 °C	28 V	On-Mom	Black	50000 Cycles	Button Round	0.4 VA	SPDT	Gull Wing	Standard
NKK Switches G3B15AB-S-YA	28 V	Process Sealed	No Marking	Surface Mount	-30 ░C	85 °C	28 V	On-Mom	Black	50000 Cycles	Button Round	0.4 VA	SPDT	Gull Wing	Standard
NKK Switches G3B15AB-S-YC	28 V	Process Sealed	No Marking	Surface Mount	-30 ░C	85 °C	28 V	On-Mom	Red	50000 Cycles	Button Round	0.4 VA	SPDT	Gull Wing	Standard
NKK Switches G3B15AB-XA	28 V	Process Sealed	No Marking	Surface Mount	-30 ░C	85 °C	28 V	On-Mom	Black	50000 Cycles	Button Round	0.4 VA	SPDT	Gull Wing	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Surface Mount
