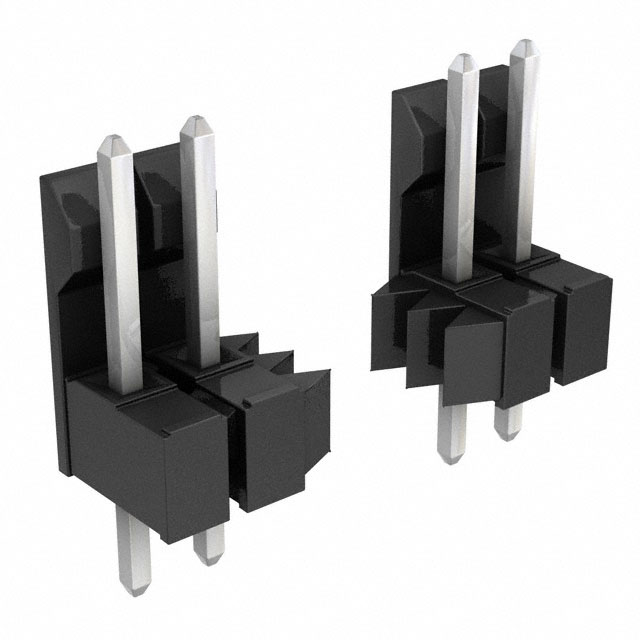

0022280060

Obsolete

Molex

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0022280060

Obsolete

Molex

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022280060

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.54 in
Overall Contact Length	13.72 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Board, Cable
Termination	Solder

002228 Series

KK 254 Breakaway Header, Right-Angle, 8 Circuits, Tin (Sn) Plating, Mating Pin Length 10.29mm (.405"), with Kinked PC Tails

...

Part	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Applications	Fastening Type	Contact Finish - Post	Number of Positions Loaded	Contact Finish - Mating	Number of Rows	Contact Type	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Color	Insulation Material	Connector Type	Style	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating [x]	Insulation Height	Insulation Height
Molex 0022283272	7.49 mm	0.295 in	27	0.12 in	3.05 mm	Through Hole	Shrouded - 1 Wall	2.54 µm	100 µin	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Push-Pull	Tin	All	Gold	1	Male Pin	Square	0.54 in	13.72 mm	30 Áin	0.76 Ám	Solder	Black	Glass Filled Nylon Polyamide (PA)	Breakaway Header	Board to Board Cable	UL94 V-0
Molex 0022289133	8.23 mm	0.324 in	13	0.135 in	3.43 mm	Through Hole Right Angle	Unshrouded	2.54 µm	100 µin	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Push-Pull	Tin	All	Gold	1	Male Pin	Square			15 µin	0.38 µm	Kinked Pin Solder	Black	Glass Filled Nylon Polyamide (PA)	Breakaway Header	Board to Board Cable	UL94 V-0	0.098 in	2.5 mm
Molex 0022285203	6.1 mm		20	0.135 in	3.43 mm	Through Hole	Unshrouded	2.54 µm	100 µin	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Push-Pull	Tin	All	Gold	1	Male Pin	Square	0.465 in	11.81 mm	15 µin	0.38 µm	Kinked Pin Solder	Black	Glass Filled Nylon Polyamide (PA)	Breakaway Header	Board to Board Cable	UL94 V-0			0.24 in	0.09 in	2.29 mm
Molex 0022286253	10.29 mm	0.405 in		0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2.54 µm	100 µin	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Push-Pull	Tin	All	Gold	1	Male Pin	Square			15 µin	0.38 µm	Solder	Black	Glass Filled Nylon Polyamide (PA)	Breakaway Header	Board to Board Cable	UL94 V-0				0.09 in	2.29 mm
Molex 0022280060	7.49 mm	0.295 in	6	0.12 in	3.05 mm	Through Hole	Shrouded - 1 Wall	2.54 µm	100 µin	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Friction Lock	Tin	All		1	Male Pin	Square	0.54 in	13.72 mm	100 çin	2.54 çm	Solder	Black	Glass Filled Nylon Polyamide (PA)	Breakaway Header	Board to Board Cable	UL94 V-0
Molex 0022283138	7.49 mm	0.295 in	13	0.12 in	3.05 mm	Through Hole	Shrouded - 1 Wall	2.54 µm	100 µin	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Push-Pull	Tin	All	Gold	1	Male Pin	Square	0.54 in	13.72 mm	30 Áin	0.76 Ám	Solder	Black	Glass Filled Nylon Polyamide (PA)	Breakaway Header	Board to Board Cable	UL94 V-0
Molex 0022283253	7.49 mm	0.295 in		0.135 in	3.43 mm	Through Hole	Shrouded - 1 Wall	2.54 µm	100 µin	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Push-Pull	Tin	All		1	Male Pin	Square	0.555 in	14.1 mm	100 çin	2.54 çm	Kinked Pin Solder	Black	Glass Filled Nylon Polyamide (PA)	Breakaway Header	Board to Board Cable	UL94 V-0
Molex 0022282346	7.49 mm	0.295 in	34	0.135 in	3.43 mm	Through Hole Right Angle	Shrouded - 1 Wall	2.54 µm	100 µin	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Push-Pull	Tin	All	Gold	1	Male Pin	Square			30 Áin	0.76 Ám	Kinked Pin Solder	Black	Glass Filled Nylon Polyamide (PA)	Breakaway Header	Board to Board Cable	UL94 V-0				0.284 in	7.21 mm
Molex 0022286130	9.17 mm	0.361 "	13	0.12 in	3.05 mm	Through Hole Right Angle	Unshrouded	2.54 µm	100 µin	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Push-Pull	Tin	All		1	Male Pin	Square			100 çin	2.54 çm	Solder	Black	Glass Filled Nylon Polyamide (PA)	Breakaway Header	Board to Board Cable	UL94 V-0				0.09 in	2.29 mm
Molex 0022283194	7.49 mm	0.295 in	19	0.135 in	3.43 mm	Through Hole	Shrouded - 1 Wall	2.54 µm	100 µin	0.1 in	2.54 mm	Automotive General Purpose Medical Telecommunications	Push-Pull	Tin	All	Gold	1	Male Pin	Square	0.555 in	14.1 mm	15 µin	0.38 µm	Kinked Pin Solder	Black	Glass Filled Nylon Polyamide (PA)	Breakaway Header	Board to Board Cable	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

002228 Series

KK 254 Breakaway Header, Right-Angle, 8 Circuits, Tin (Sn) Plating, Mating Pin Length 10.29mm (.405"), with Kinked PC Tails

Documents

Technical documentation and resources

No documents available
