92-851.342 - 92-851.342

92-851.342

Active
EAO

SWITCH, PUSHBUTTON, SPST, 100MA, 42V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsColor Change UpdateDatasheet+1
92-851.342 - 92-851.342

92-851.342

Active
EAO

SWITCH, PUSHBUTTON, SPST, 100MA, 42V

Deep-Dive with AI

DocumentsColor Change UpdateDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification92-851.342
(Select First, Then Apply Filters) Compatible SeriesEAO, 92
CircuitSPST-NO
Contact Rating @ Voltage42 VAC/DC, 0.1 A
RequiresSwitch Body
Termination StylePC Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 6.56
10$ 5.91
25$ 5.61
50$ 5.37
100$ 5.19
250$ 4.93
500$ 4.51
1000$ 4.30
NewarkEach 1$ 3.60

Description

General part information

92-851 Series

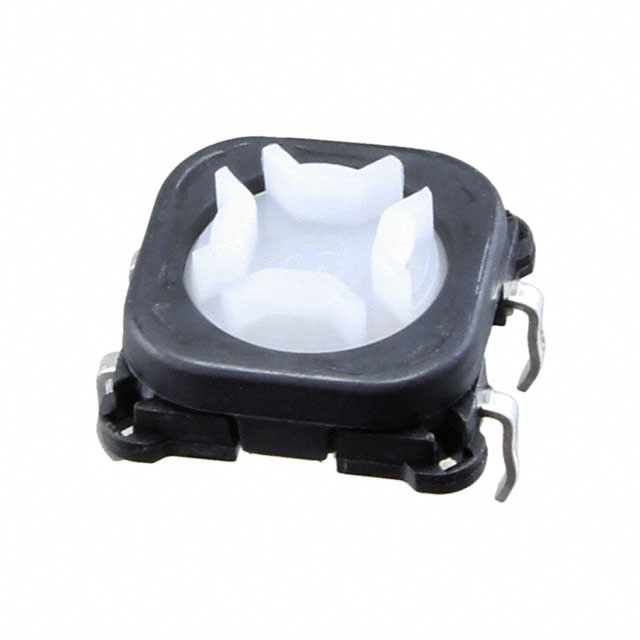

92-851.342 is an illuminative, PCB mounting switching element. It features ≥500 000 cycles of operation at 42VDC, 50mA, according to IEC 60512-5-9c, When attention is paid to the direction of current flow from terminal 3/4 to 1/2 the electrical life can be prolonged.
