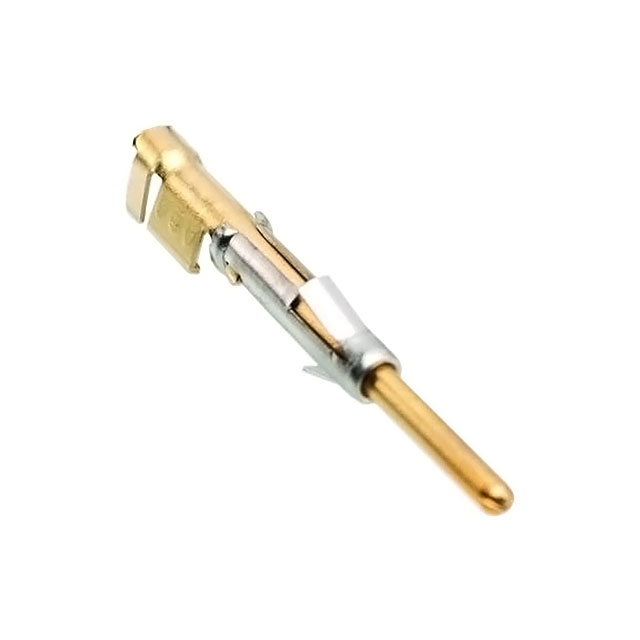

SP14M1F

Obsolete

Amphenol Sine Systems Corp

CONTACT PIN 14AWG CRIMP GOLD

Search across all available documentation for this part.

Obsolete

Amphenol Sine Systems Corp

CONTACT PIN 14AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Features	Contact Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Contact Size	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Finish	Contact Type	Termination Finish	Contact Finish Thickness	Wire Gauge or Range - AWG
Amphenol Sine Systems Corp SP14M1G30	Insulation Support	Copper Alloy	14 AWG	16 AWG	Signal Stamped	0.76 Ám	30 Áin	Crimp	16	2.5 mm²	2 mm²	Gold	Pin
Amphenol Sine Systems Corp SP14M1G5	Insulation Support	Copper Alloy	14 AWG	16 AWG	Signal Stamped	0.127 µm	5 µin	Crimp	16	2.5 mm²	2 mm²	Gold	Pin
Amphenol Sine Systems Corp SP14M1G10	Insulation Support	Copper Alloy	14 AWG	16 AWG	Signal Stamped	0.25 Ám	10 Áin	Crimp	16	2.5 mm²	2 mm²	Gold	Pin
Amphenol Sine Systems Corp SP14M1F	Insulation Support	Copper Alloy			Signal Stamped			Crimp	16	2.5 mm²	2 mm²	Gold	Pin	Copper Alloy	Flash	14 AWG
Amphenol Sine Systems Corp SP14M2G30	Insulation Support	Copper Alloy	14 AWG	16 AWG	Signal Stamped	0.76 Ám	30 Áin	Crimp	16	2.5 mm²	2 mm²	Gold	Pin
Amphenol Sine Systems Corp SP14M2F	Insulation Support	Copper Alloy	14 AWG	16 AWG	Signal Stamped			Crimp	16	2.5 mm²	2 mm²	Gold	Pin		Flash
Amphenol Sine Systems Corp SP14M2T	Insulation Support	Copper Alloy	14 AWG	16 AWG	Signal Stamped			Crimp	16	2.5 mm²	2 mm²	Tin	Pin
Amphenol Sine Systems Corp SP14M2N	Insulation Support	Copper Alloy	14 AWG	16 AWG	Signal Stamped			Crimp	16	2.5 mm²	2 mm²	Nickel	Pin
Amphenol Sine Systems Corp SP14M1N	Insulation Support	Copper Alloy	14 AWG	16 AWG	Signal Stamped			Crimp	16	2.5 mm²	2 mm²	Nickel	Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pin Contact 14 AWG Size 16 Crimp Gold
