6XV18755CH50

Active

Siemens

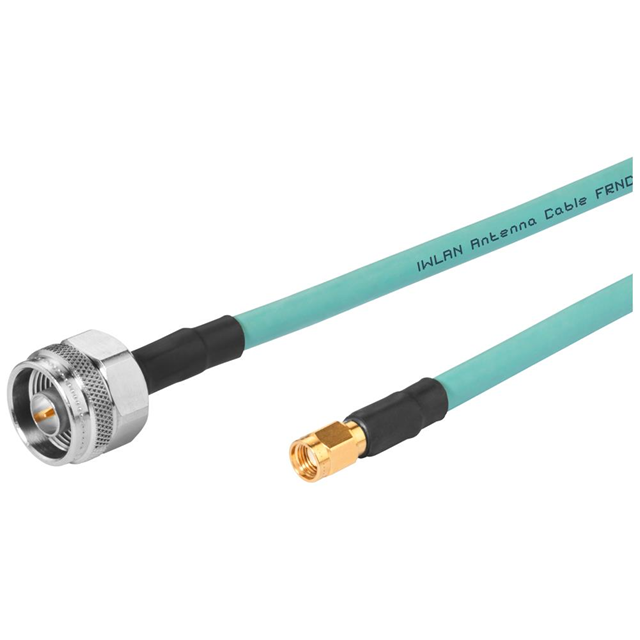

CBL ASSY NTYPE-RPSMA PL-PL 16.4'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6XV18755CH50

Active

Siemens

CBL ASSY NTYPE-RPSMA PL-PL 16.4'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6XV18755CH50

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Color	Aqua
Frequency - Max [Max]	6000 MHz
Ingress Protection	IP68 - Dust Tight, Waterproof
Length	196.9 in
Length	5 m
Length	16.4 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	N-Type to RP-SMA

6XV18755 Series

Part	Overall Impedance	2nd Connector	Length [x]	Length [x]	1st Connector	Frequency - Max [Max]	2nd Contact Gender	Operating Temperature [Min]	Operating Temperature [Max]	Style	2nd Connector Mounting Type	Color	Ingress Protection	1st Connector Mounting Type	1st Contact Gender	Length	Length	Length
Siemens 6XV18755DE30	50 Ohms	SMA Plug	300 mm	11.811 in	RP-SMA Plug	6000 MHz	Female	-40 °C	80 C	RP-SMA to SMA	Free Hanging (In-Line)	Aqua	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Female
Siemens 6XV18755AH50		N-Type Plug				6 MHz	Male	-40 °C	80 C	N-Type to N-Type	Free Hanging (In-Line)	Aqua	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Male	196.9 in	5 m	16.4 ft
Siemens 6XV18755VH10	50 Ohms	N-Type Jack			QMA Plug	6000 MHz	Female	-30 ░C	100 °C	N-Type to QMA	Free Hanging (In-Line)	Black	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Male	39.4 in	1 m	3.3 ft
Siemens 6XV18755UH10	50 Ohms	N-Type Plug			SMA Plug	6000 MHz	Male	-30 ░C	100 °C	SMA to N-Type	Free Hanging (In-Line)	Black	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Male	39.4 in	1 m	3.3 ft
Siemens 6XV18755CN10	50 Ohms	N-Type Plug			RP-SMA Plug	6000 MHz	Male	-40 °C	80 C	N-Type to RP-SMA	Free Hanging (In-Line)	Aqua	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Male
Siemens 6XV18755CH50	50 Ohms	N-Type Plug			RP-SMA Plug	6000 MHz	Male	-40 °C	80 C	N-Type to RP-SMA	Free Hanging (In-Line)	Aqua	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Male	196.9 in	5 m	16.4 ft
Siemens 6XV18755AN10	50 Ohms	N-Type Plug				6000 MHz	Male	-40 °C	80 C	N-Type to N-Type	Free Hanging (In-Line)	Aqua	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Male
Siemens 6XV18755JH10	50 Ohms	N-Type Jack			QMA Plug	6000 MHz	Female	-40 °C	80 C	N-Type to QMA	Free Hanging (In-Line)	Aqua	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Male	39.4 in	1 m	3.3 ft
Siemens 6XV18755AH20	50 Ohms	N-Type Plug				6000 MHz	Male	-40 °C	80 C	N-Type to N-Type	Free Hanging (In-Line)	Aqua	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Male	78.7 in	2 m	6.6 ft
Siemens 6XV18755UH20	50 Ohms	N-Type Plug			SMA Plug	6000 MHz	Male	-30 ░C	100 °C	SMA to N-Type	Free Hanging (In-Line)	Black	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	Male	78.7 in	2 m	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.54

Description

General part information

6XV18755 Series

Cable Assembly Coaxial N-Type to RP-SMA 196.9" (5.0m) 16.4'
