SDF-V25-113L011

Active

MH Connectors

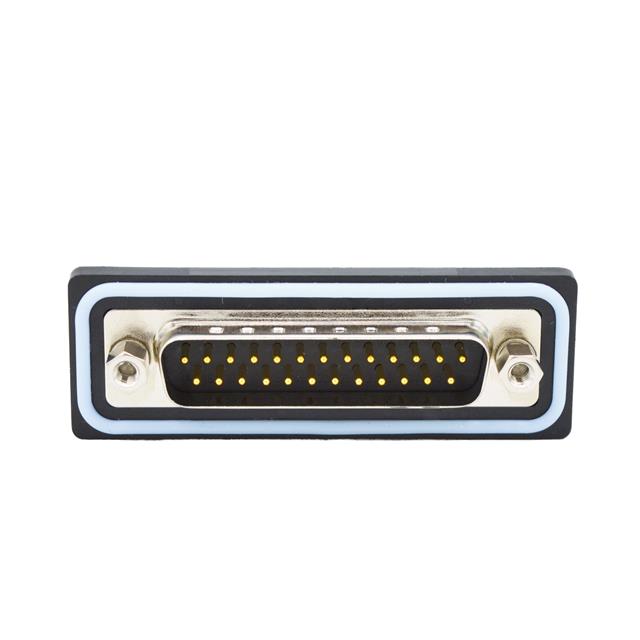

CONN D-SUB PLUG 25P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDF-V25-113L011

Active

MH Connectors

CONN D-SUB PLUG 25P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDF-V25-113L011

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

SDF-V25 Series

Part	Contact Finish	Color	Contact Material	Ingress Protection	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Dielectric Material	Number of Rows	Connector Style	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Current Rating (Amps)	Connector Type	Termination	Features	Shell Material, Finish	Flange Feature	Contact Finish Thickness
MH Connectors SDF-V25-113L052	Gold	Black	Brass	IP67 - Dust Tight Waterproof	B DB	3	-25 °C	85 °C	UL94 V-0	Polybutylene Terephthalate (PBT)	2	D-Sub	Signal	0.76 Ám	30 Áin	Panel Mount Through Hole	5 A	Male Pins Plug	Solder	Board Lock Grounding Indents	Nickel Plated Steel	Female Screwlock (4-40) Mating Side
MH Connectors SDF-V25-113L011	Gold	Black	Brass	IP67 - Dust Tight Waterproof	B DB	3	-25 °C	85 °C	UL94 V-0	Polybutylene Terephthalate (PBT)	2	D-Sub	Signal			Panel Mount Through Hole	5 A	Male Pins Plug	Solder	Grounding Indents	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Flash
MH Connectors SDF-V25-213L052	Gold	Black	Brass	IP67 - Dust Tight Waterproof	B DB	3	-25 °C	85 °C	UL94 V-0	Polybutylene Terephthalate (PBT)	2	D-Sub	Signal	0.76 Ám	30 Áin	Panel Mount Through Hole	5 A	Receptacle Female Sockets	Solder		Nickel Plated Steel	Female Screwlock (4-40) Mating Side
MH Connectors SDF-V25-213L012	Gold	Black	Brass	IP67 - Dust Tight Waterproof	B DB	3	-25 °C	85 °C	UL94 V-0	Polybutylene Terephthalate (PBT)	2	D-Sub	Signal	0.76 Ám	30 Áin	Panel Mount Through Hole	5 A	Receptacle Female Sockets	Solder		Nickel Plated Steel	Female Screwlock (4-40) Mating Side
MH Connectors SDF-V25-113L012	Gold	Black	Brass	IP67 - Dust Tight Waterproof	B DB	3	-25 °C	85 °C	UL94 V-0	Polybutylene Terephthalate (PBT)	2	D-Sub	Signal	0.76 Ám	30 Áin	Panel Mount Through Hole	5 A	Male Pins Plug	Solder	Grounding Indents	Nickel Plated Steel	Female Screwlock (4-40) Mating Side
MH Connectors SDF-V25-213L051	Gold	Black	Brass	IP67 - Dust Tight Waterproof	B DB	3	-25 °C	85 °C	UL94 V-0	Polybutylene Terephthalate (PBT)	2	D-Sub	Signal			Panel Mount Through Hole	5 A	Receptacle Female Sockets	Solder		Nickel Plated Steel	Female Screwlock (4-40) Mating Side	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.44
		10	$ 8.02
		25	$ 7.25
		40	$ 6.95

Description

General part information

SDF-V25 Series

25 Position D-Sub Plug, Male Pins Connector
