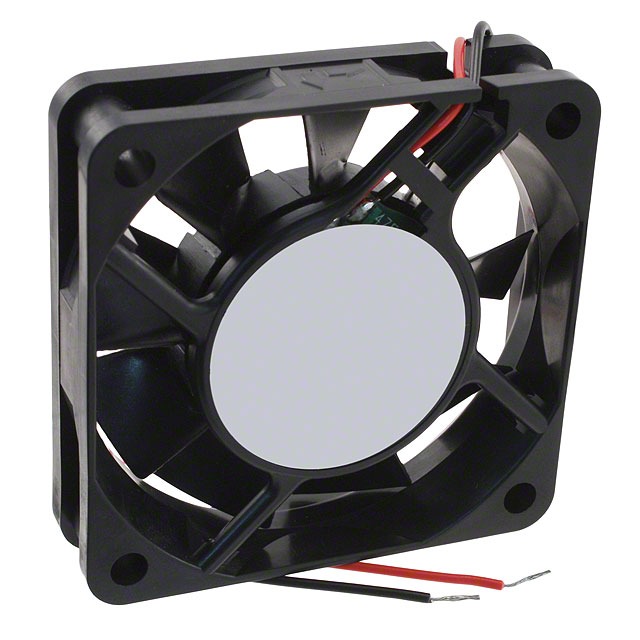

2406KL-04W-B40-L00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 60X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 2406KL UL Report +2

2406KL-04W-B40-L00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 60X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet 2406KL UL Report +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2406KL-04W-B40-L00

Air Flow	0.445 mł/min
Air Flow	15.9 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	31 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.56 W
RPM	4100 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	39.6 Pa
Static Pressure	0.159 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	0.099 lb
Weight	44.91 g
Width [x]	15 mm

2406KL Series

Part	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features	Noise	RPM	Static Pressure	Static Pressure	Voltage - Rated	Air Flow	Air Flow	Material - Blade	Lifetime @ Temp.	Material - Frame	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Weight	Weight	Fan Type	Termination	Width [x]	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)
NMB TECHNOLOGIES 2406KL-04W-B49-L50	1.56 W	-10 °C	-10 °C	60 °C	60 °C	Speed Sensor (Tach)	31 dB(A)	4100 RPM	39.6 Pa	0.159 in H2O	12 VDC	0.445 mł/min	15.9 CFM	Plastic	70000 Hrs	Plastic	60 mm	60 mm	CE CSA UL VDE	0.099 lb	44.91 g	Tubeaxial	3 Wire Leads	15 mm	Ball	13.8 VDC	6 VDC
NMB TECHNOLOGIES 2406KL-04W-B19-L00	0.48 W	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Sensor	19 dB(A)	1800 RPM	8.5 Pa	0.034 in H2O	12 VDC	0.188 mł/min	6.7 CFM	Plastic	70000 Hrs	Plastic	60 mm	60 mm	CE CSA UL VDE	0.099 lb	44.91 g	Tubeaxial	3 Wire Leads	15 mm	Ball	13.8 VDC	7 V	40 mA
NMB TECHNOLOGIES 2406KL-04W-B49-L00	1.56 W	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Sensor	31 dB(A)	4100 RPM	39.6 Pa	0.159 in H2O	12 VDC	0.445 mł/min	15.9 CFM	Plastic	70000 Hrs	Plastic	60 mm	60 mm	CE CSA UL VDE	0.099 lb	44.91 g	Tubeaxial	3 Wire Leads	15 mm	Ball	13.8 VDC	6 VDC
NMB TECHNOLOGIES 2406KL-05W-B39-L50	1.44 W	-10 °C	-10 °C	60 °C	60 °C	Speed Sensor (Tach)	28 dB	3600 RPM	31.1 Pa	0.125 in H2O	24 VDC			Plastic	70000 Hrs	Plastic	60 mm	60 mm	CE CSA UL VDE	0.099 lb	44.91 g	Tubeaxial	3 Wire Leads	15 mm	Ball	27.6 VDC	12 VDC	60 mA
NMB TECHNOLOGIES 2406KL-05W-B39-L00	1.44 W	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Sensor	28 dB	3600 RPM	31.1 Pa	0.125 in H2O	24 VDC			Plastic	70000 Hrs	Plastic	60 mm	60 mm	CE CSA UL VDE	0.099 lb	44.91 g	Tubeaxial	3 Wire Leads	15 mm	Ball	27.6 VDC	12 VDC	60 mA
NMB TECHNOLOGIES 2406KL-05W-B50-L00	2.4 W	-10 °C	-10 °C	60 °C	60 °C		34 dB(A)	4600 RPM	51.2 Pa	0.205 in H2O	24 VDC	0.512 m³/min	18.3 CFM	Plastic	70000 Hrs	Plastic	60 mm	60 mm	CE CSA UL VDE	0.099 lb	44.91 g	Tubeaxial	2 Wire Leads	15 mm	Ball	27.6 VDC	10 VDC	100 mA
NMB TECHNOLOGIES 2406KL-05W-B49-L50	1.68 W	-10 °C	-10 °C	60 °C	60 °C	Speed Sensor (Tach)	31 dB(A)	4100 RPM	39.6 Pa	0.159 in H2O	24 VDC	0.445 mł/min	15.9 CFM	Plastic	70000 Hrs	Plastic	60 mm	60 mm	CE CSA UL VDE	0.099 lb	44.91 g	Tubeaxial	3 Wire Leads	15 mm	Ball	27.6 VDC	10 VDC	70 mA
NMB TECHNOLOGIES 2406KL-04W-B20-L00	840 mW	-10 °C	-10 °C	60 °C	60 °C		25 dB(A)	3100 RPM	23.4 Pa	0.094 in H2O	12 VDC	0.325 mł/min	11.6 CFM	Plastic	70000 Hrs	Plastic	60 mm	60 mm	CE CSA UL VDE	0.099 lb	44.91 g	Tubeaxial	2 Wire Leads	15 mm	Ball	13.8 VDC	6 VDC	70 mA
NMB TECHNOLOGIES 2406KL-04W-B29-L00	840 mW	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Sensor	25 dB(A)	3100 RPM	23.4 Pa	0.094 in H2O	12 VDC	0.325 mł/min	11.6 CFM	Plastic	70000 Hrs	Plastic	60 mm	60 mm	CE CSA UL VDE	0.099 lb	44.91 g	Tubeaxial	3 Wire Leads	15 mm	Ball	13.8 VDC	6 VDC	70 mA
NMB TECHNOLOGIES 2406KL-04W-B40-L00	1.56 W	-10 °C	-10 °C	60 °C	60 °C		31 dB(A)	4100 RPM	39.6 Pa	0.159 in H2O	12 VDC	0.445 mł/min	15.9 CFM	Plastic	70000 Hrs	Plastic	60 mm	60 mm	CE CSA UL VDE	0.099 lb	44.91 g	Tubeaxial	2 Wire Leads	15 mm	Ball	13.8 VDC	6 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2406KL Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 15.9 CFM (0.445mł/min) 2 Wire Leads

2406KL-04W-B40-L00
