202-0013-01

Active

Schmartboard, Inc.

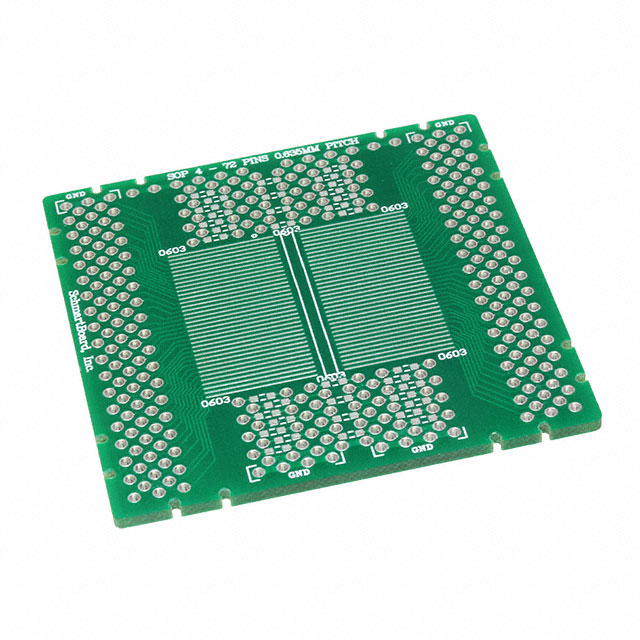

SOP, 4 - 72 PINS 0.635MM PITCH,

Search across all available documentation for this part.

Active

Schmartboard, Inc.

SOP, 4 - 72 PINS 0.635MM PITCH,

Technical Specifications

Parameters and characteristics for this part

Specification	202-0013-01

Number of Positions	72
Package Accepted	PSSOP, SSOP, TSSOP, SOP, QSOP, SO
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

Part	Package Accepted	Pitch [x]	Pitch [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Proto Board Type	Number of Positions
Schmartboard, Inc. 202-0013-01	PSSOP QSOP SO SOP SSOP TSSOP	0.64 mm	0.025 in	2 in	50.8 mm	50.8 mm	2 in	SMD to Plated Through Hole Board	72

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

SOP, 4 - 72 PINS 0.635MM PITCH,

Technical documentation and resources
