430884-301
Laird Thermal Systems, Inc.

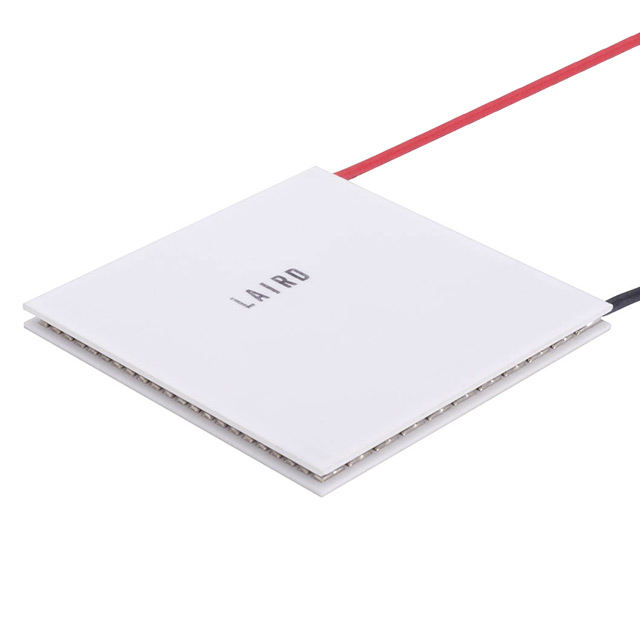

PELTIER UT8,24,F1,5555,TA,W6
Deep-Dive with AI
Search across all available documentation for this part.
430884-301
Laird Thermal Systems, Inc.
PELTIER UT8,24,F1,5555,TA,W6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430884-301 |
|---|---|
| Current - Max [Max] | 8.5 A |
| Delta Tmax @ Th | 72 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.8 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 153 W |
| Size / Dimension [x] | 55 mm |
| Size / Dimension [y] | 55 mm |
| Voltage - Max [Max] | 29.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.16 | |
| 50 | $ 71.49 | |||
| 100 | $ 69.54 | |||
Description
General part information
430884 Series
Peltier Module 153.0W @ 25°C 8.5 A 80°C
