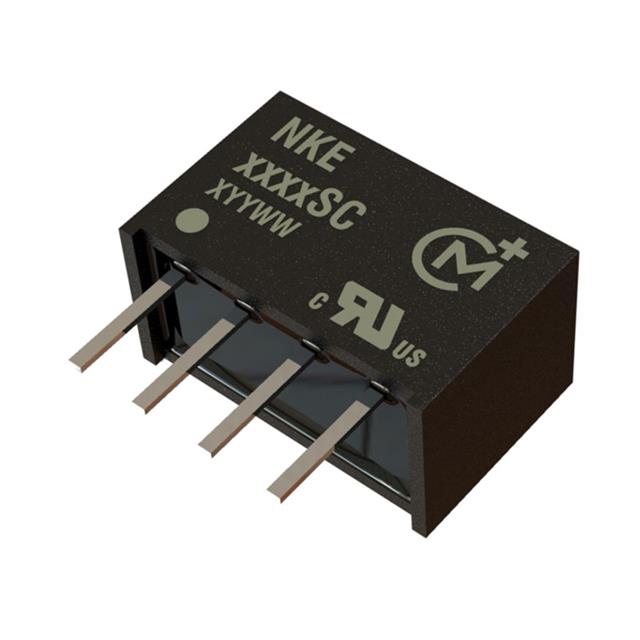

NKE0512SC
ActiveMurata Power Solutions Inc.
ISOLATED POWER MODULES ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NKE0512SC
ActiveMurata Power Solutions Inc.
ISOLATED POWER MODULES ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NKE0512SC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 83 mA |
| Efficiency | 78 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SIP Module |
| Size / Dimension [x] | 11.5 mm |
| Size / Dimension [x] | 0.45 in |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [z] | 7.5 mm |
| Size / Dimension [z] | 0.29 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
NKE05 Series
| Part | Mounting Type | Type | Number of Outputs | Package / Case | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Output 1 | Applications | Voltage - Isolation | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. | Through Hole | Isolated Module | 1 | 4-SIP Module | 83 mA | 5.5 V | 4.5 V | 11.5 mm | 7.5 mm | 6 mm | 0.45 in | 0.24 " | 0.29 " | 85 °C | -40 °C | 78 % | 12 V | ITE (Commercial) | 3000 V | |
Murata Power Solutions Inc. | Through Hole | Isolated Module | 1 | 8-DIP Module | 5.5 V | 4.5 V | 11.5 mm | 5.4 mm | 9.8 mm | 0.45 in | 0.39 " | 0.21 in | 85 °C | -40 °C | 75 % | 9 V | ITE (Commercial) | 3000 V | 4 Lead | |
Murata Power Solutions Inc. | Through Hole | Isolated Module | 1 | 8-DIP Module | 200 mA | 5.5 V | 4.5 V | 11.5 mm | 5.4 mm | 9.8 mm | 0.45 in | 0.39 " | 0.21 in | 85 °C | -40 °C | 77 % | 5 V | ITE (Commercial) | 3000 V | 4 Lead |
Murata Power Solutions Inc. | Through Hole | Isolated Module | 1 | 8-DIP Module | 83 mA | 5.5 V | 4.5 V | 11.5 mm | 5.4 mm | 9.8 mm | 0.45 in | 0.39 " | 0.21 in | 85 °C | -40 °C | 78 % | 12 V | ITE (Commercial) | 3000 V | 4 Lead |
Murata Power Solutions Inc. | Through Hole | Isolated Module | 1 | 4-SIP Module | 303 mA | 5.5 V | 4.5 V | 11.5 mm | 7.5 mm | 6 mm | 0.45 in | 0.24 " | 0.29 " | 85 °C | -40 °C | 74 % | 3.3 V | ITE (Commercial) | 3000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NKE05 Series
Isolated Module DC DC Converter 1 Output 12V 83mA 4.5V - 5.5V Input
