Technical Specifications
Parameters and characteristics for this part

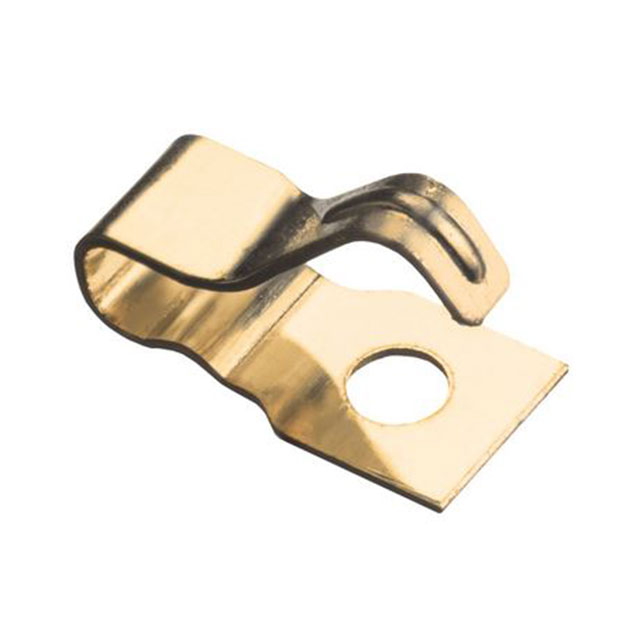

| Specification | S7151-45R |
|---|---|
| Attachment Method | Solder |
| Height [z] | 3 mm |
| Height [z] | 0.118 in |
| Length | 4.6 mm |
| Length | 0.181 in |
| Material | Phosphor Bronze |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Plating | Gold |
| Plating - Thickness | Flash |
| Type | Shield Finger |
| Width [x] | 0.091 in |
| Width [x] | 2.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.21 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.24 | |||
| 25 | $ 0.21 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 2000 | $ 0.15 | ||
| 4000 | $ 0.15 | |||
| 6000 | $ 0.14 | |||
| 10000 | $ 0.14 | |||
| 14000 | $ 0.14 | |||
| 20000 | $ 0.14 | |||
| 50000 | $ 0.13 | |||
Description
General part information
S7151 Series
RFI SHLD FINGER PHOS GOLD SOLDER
Documents
Technical documentation and resources
