LSN6B

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION DPDT 10A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

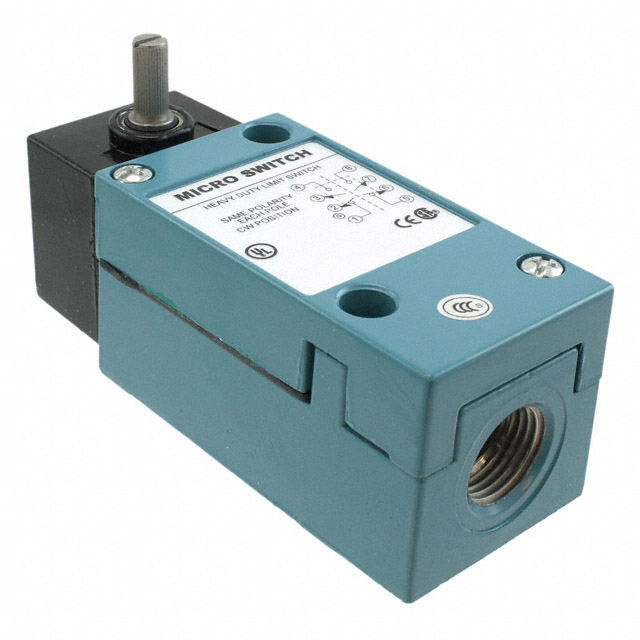

LSN6B

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION DPDT 10A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSN6B

Actuator Type	Side Rotary - No Lever
Circuit	DPDT (DB/DM)
Current Rating (Amps)	10 A, 800 mA
Differential Travel	40 °
Mounting Type	Chassis Mount
Operating Force	46 gfm
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-1 °C
Overtravel	20 °
Pretravel	65 °
Switch Function	On-On
Termination Style	Plug In
Voltage Rating - AC	120 V
Voltage Rating - DC	115 V

1PB5 Series

...

Part	Mounting Type	Overtravel	Voltage Rating - DC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Operating Force	Current Rating (Amps)	Actuator Type	Differential Travel	Termination Style	Voltage Rating - AC	Switch Function	Actuator Marking	Color - Actuator/Cap	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Pretravel	Overtravel	Differential Travel	Mechanical Life	Operating Force [Max]	Operating Force [Min]	Release Force	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions LSN6B	Chassis Mount	20 °	115 V	DPDT (DB/DM)	121 °C	-1 °C	65 °	46 gfm	10 A 800 mA	Side Rotary - No Lever	40 °	Plug In	120 V	On-On
Honeywell Sensing and Productivity Solutions 1TP4-6	Flange Panel Mount			SPST-NO	71 °C	-54 °C			10 A	Concave (Curved)		Screw Terminal	125 V	Off-Mom	No Marking	Clear	Sealed	23.9 mm	38.4 mm	CE CSA UKCA UL
Honeywell Sensing and Productivity Solutions LSE4L	Chassis Mount	0.19 in	115 V	DPDT (DB/DM)	93 °C	-12 °C	0.1 in	2720 gf	10 A 800 mA	Side Plunger		Screw Terminal	120 V	On-Mom							2.5 mm	4.8 mm
Honeywell Sensing and Productivity Solutions 4TP1-3	Flange Panel Mount			4PDT	71 °C	-54 °C			15 A	Concave (Curved)		Screw Terminal	125 V	On-On	No Marking	Clear	Sealed			CE CSA UKCA UL
Honeywell Sensing and Productivity Solutions 4SX5-T	Chassis Mount			SPDT	125 °C	-55 °C				Round (Pin Plunger)		Solder Turret		On-Mom
Honeywell Sensing and Productivity Solutions LSC2B	Chassis Mount	0.19 in	115 V	DPDT (DB/DM)	93 °C	-12 °C	0.071 in	1814 gf	10 A 800 mA	Round (Pin Plunger)	0.02 in	Plug In	120 V	On-Mom							1.8 mm	4.8 mm	0.5 mm
Honeywell Sensing and Productivity Solutions LSH9A	Chassis Mount	66 °	115 V	SPDT (DB/DM)	121 °C	-1 °C	9 °	19 gfm	10 A 800 mA	Side Rotary - No Lever	3 °	Plug In	120 V	On-Mom			Status Indicator
Honeywell Sensing and Productivity Solutions LSP5A	Chassis Mount	66 °	115 V	SPDT (DB/DM)	121 °C	-12 °C	9 °	46 gfm	10 A 800 mA	Side Rotary - No Lever	3 °	Plug In	120 V	On-Mom			Status Indicator
Honeywell Sensing and Productivity Solutions YZ-2R	Chassis Mount	0.005 in	125 VDC	SPST-NO	85 °C	-55 °C	0.015 in		15 A 500 mA	Round (Pin Plunger)	0.002 in	Solder Lug	125 V	Off-Mom							0.4 mm	0.13 mm	0.05 mm	20000000 Cycles	368 gf	255 gf	113 gf	0.625 in	15.9 mm
Honeywell Sensing and Productivity Solutions 4TP7-1	Flange Panel Mount			4PDT	71 °C	-54 °C			15 A	Actuator Arm Cap Required		Screw Terminal	125 V	On-Off-On	Varies by Cap			23.9 mm	38.4 mm	CE CSA UKCA UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 356.05

Description

General part information

1PB5 Series

Switch DPDT (DB/DM) Chassis Mount
