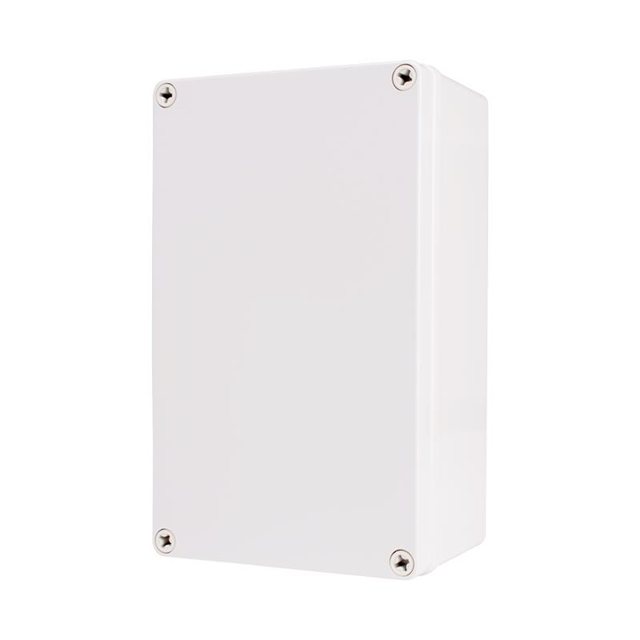

BC-CGS-142309

Active

Boxco

BOX PLAS LGT GRY 9.06"L X 5.51"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-CGS-142309

Active

Boxco

BOX PLAS LGT GRY 9.06"L X 5.51"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BC-CGS-142309

Area (L x W) [custom]	322 cm˛
Area (L x W) [custom]	49.9 in˛
Color	Light Gray
Container Type	Box
Design	Lift-Off Screw Cover
Features	Sealing Gasket, Wall Mount, Flame Retardant
Height [z]	3.74 in
Height [z]	95 mm
Material	Plastic, Polycarbonate/Fiberglass
Material Flammability Rating	UL94 V-0, UL94 5VA, UL94 HB
Ratings	NEMA 6, IP66, UL 508A, NEMA 4X, IP67
Size / Dimension [x]	230 mm
Size / Dimension [x]	9.055 in
Size / Dimension [y]	5.512 in
Size / Dimension [y]	140 mm

BC-CG Series

Part	Ratings	Design	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material Flammability Rating	Color	Material	Container Type	Height [z]	Height [z]	Features	Size / Dimension [y]	Size / Dimension [x]	Area (L x W) [custom]	Area (L x W) [custom]
Boxco BC-CGP-112610	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Hinged Door Stainless Steel Latch	44.3 in˛	286 cm˛	4.331 in	110 mm	260 mm	10.236 inches	UL94 5VA UL94 HB UL94 V-0	Light Gray	Plastic Polycarbonate/Fiberglass	Box	100 mm	3.937 in	Flame Retardant Hinged Latches Lockable Sealing Gasket
Boxco BC-CGP-203013	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Hinged Door Stainless Steel Latch	93 in˛	600 cm²	7.874 "		300 mm	11.811 in	UL94 5VA UL94 HB UL94 V-0	Light Gray	Plastic Polycarbonate/Fiberglass	Box	130 mm	5.118 in	Flame Retardant Hinged Latches Lockable Sealing Gasket	200 mm
Boxco BC-CGS-151507	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Lift-Off Screw Cover	34.9 in˛	225 cm²	5.906 "		150 mm	5.906 in	UL94 5VA UL94 HB UL94 V-0	Light Gray	Plastic Polycarbonate/Fiberglass	Box	75 mm	2.953 in	Flame Retardant Sealing Gasket Wall Mount	150 mm
Boxco BC-CGS-060905	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Lift-Off Screw Cover	9.57 in˛	61.8 cm˛	2.559 in		95 mm	3.74 "	UL94 5VA UL94 HB UL94 V-0	Light Gray	Plastic Polycarbonate/Fiberglass	Box	55 mm	2.165 in	Flame Retardant Sealing Gasket Wall Mount	65 mm
Boxco BC-CGS-212310	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Lift-Off Screw Cover	74.9 in˛	483 cm˛	8.268 in		230 mm	9.055 in	UL94 5VA UL94 HB UL94 V-0	Light Gray	Plastic Polycarbonate/Fiberglass	Box	100 mm	3.937 in	Flame Retardant Sealing Gasket Wall Mount	210 mm
Boxco BC-CGP-283813	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Hinged Door Stainless Steel Latch	165 in˛	1064 cm˛	11.024 "		380 mm	14.961 in	UL94 5VA UL94 HB UL94 V-0	Light Gray	Plastic Polycarbonate/Fiberglass	Box	130 mm	5.118 in	Flame Retardant Hinged Latches Lockable Sealing Gasket	280 mm
Boxco BC-CGS-283818	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Lift-Off Screw Cover	165 in˛	1064 cm˛	11.024 "		380 mm	14.961 in	UL94 5VA UL94 HB UL94 V-0	Light Gray	Plastic Polycarbonate/Fiberglass	Box	180 mm	7.087 in	Flame Retardant Sealing Gasket Wall Mount	280 mm
Boxco BC-CGS-202016	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Lift-Off Screw Cover	62 in²	400 cm²		200 mm	7.874 "		UL94 5VA UL94 HB UL94 V-0	Light Gray	Plastic Polycarbonate/Fiberglass	Box	160 mm	6.299 in	Flame Retardant Sealing Gasket Wall Mount	7.874 "	200 mm
Boxco BC-CGS-161607	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Lift-Off Screw Cover	39.7 in˛	256 cm˛	6.299 in		160 mm	6.299 "	UL94 5VA UL94 HB UL94 V-0	Light Gray	Plastic Polycarbonate/Fiberglass	Box	70 mm	2.756 "	Flame Retardant Sealing Gasket Wall Mount	160 mm
Boxco BC-CGS-142309	IP66 IP67 NEMA 4X NEMA 6 UL 508A	Lift-Off Screw Cover			5.512 in		230 mm	9.055 in	UL94 5VA UL94 HB UL94 V-0	Light Gray	Plastic Polycarbonate/Fiberglass	Box	95 mm	3.74 in	Flame Retardant Sealing Gasket Wall Mount	140 mm		322 cm˛	49.9 in˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.92

Description

General part information

BC-CG Series

Box Plastic, Polycarbonate/Fiberglass Light Gray Lift-Off Screw Cover 9.055" L x 5.512" W (230.00mm x 140.00mm) X 3.740" (95.00mm)
