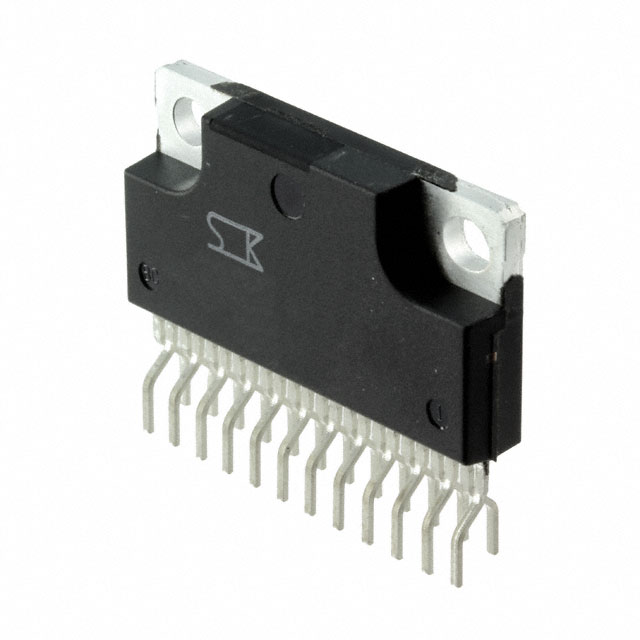

SLA6845MZ-LF2171

Obsolete

Sanken Electric USA Inc.

IC MOTOR DRVR 13.5V-16.5V 24ZIP

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

IC MOTOR DRVR 13.5V-16.5V 24ZIP

Technical Specifications

Parameters and characteristics for this part

Specification	SLA6845MZ-LF2171

Applications	Appliance
Current - Output	3 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Synchronous, AC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (3)
Package / Case	24-SSIP Formed Leads
Supplier Device Package	24-ZIP LF2171
Technology	IGBT
Voltage - Load [Max]	450 V
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

Part	Current - Output	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Applications	Supplier Device Package	Package / Case	Motor Type - AC, DC	Function	Output Configuration	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type
Sanken Electric USA Inc. SLA6845MZ-LF2178	3 A	Parallel	150 °C	-20 °C	450 V	Appliance	24-SIP	24-SSIP Exposed Tab Formed Leads	AC Synchronous	Driver - Fully Integrated Control and Power Stage	Half Bridge (3)	IGBT	13.5 V	16.5 V
Sanken Electric USA Inc. SLA6845MZ-LF2171	3 A	Parallel	150 °C	-20 °C	450 V	Appliance	24-ZIP LF2171	24-SSIP Formed Leads	AC Synchronous	Driver - Fully Integrated Control and Power Stage	Half Bridge (3)	IGBT	13.5 V	16.5 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver IGBT Parallel 24-ZIP LF2171
