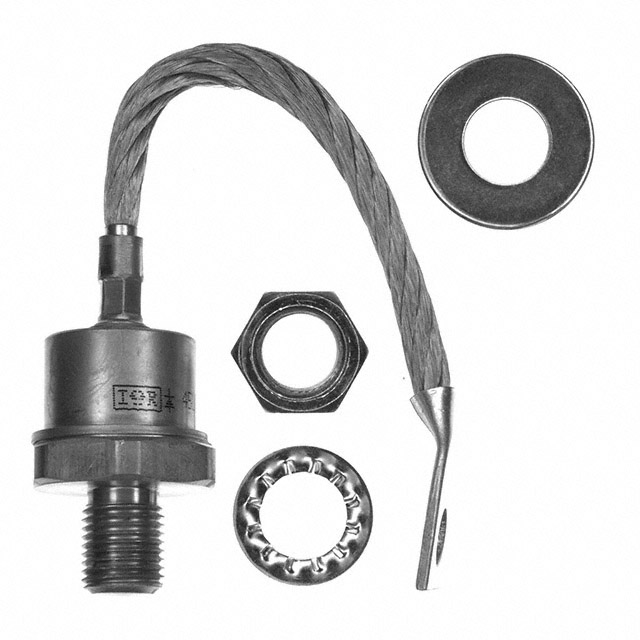

1N3087R

Active

Vishay General Semiconductor - Diodes Division

DIODE STANDARD 300V 150A DO205AC

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE STANDARD 300V 150A DO205AC

Technical Specifications

Parameters and characteristics for this part

Specification	1N3087R

Current - Average Rectified (Io)	150 A
Current - Reverse Leakage @ Vr	17 mA
Mounting Type	Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-205AC, DO-30, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-205AC (DO-30)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	300 V
Voltage - Forward (Vf) (Max) @ If	1.2 V

Part	Current - Reverse Leakage @ Vr	Mounting Type	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Supplier Device Package	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Voltage - Forward (Vf) (Max) @ If
Vishay General Semiconductor - Diodes Division 1N3087R	17 mA	Stud Mount	150 A	300 V	Standard	DO-205AC (DO-30)	Standard Recovery >500ns	200 mA	200 C	-65 C	DO-205AC DO-30 Stud	1.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 116.48

General part information

Diode 300 V 150A Stud Mount DO-205AC (DO-30)
