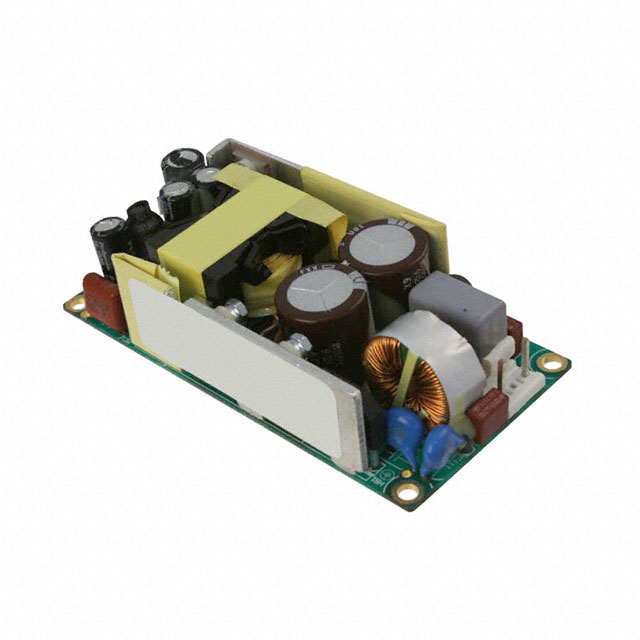

MTB080015A
ActiveInventus Power
AC/DC POWER SUPPLY SINGLE-OUT 15V 5.3A 80W
Deep-Dive with AI
Search across all available documentation for this part.
MTB080015A
ActiveInventus Power
AC/DC POWER SUPPLY SINGLE-OUT 15V 5.3A 80W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MTB080015A |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cTUVus |
| Efficiency | 90 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 80 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 25.7 mm |
| Size / Dimension [z] | 1.01 in |
| Type | Open Frame |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 41.96 | |
Description
General part information
MTB080015 Series
Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
